4. Reset button.
5. Two 10G SFP+ ports.
6. Two 1G SFP combo ports.
7. Twenty-four 1G copper switch ports.
S3124 Platform PSU Side
The S3124 PSU side (shown in the following illustration) includes the power supplies, fan tray, and
stacking ports.

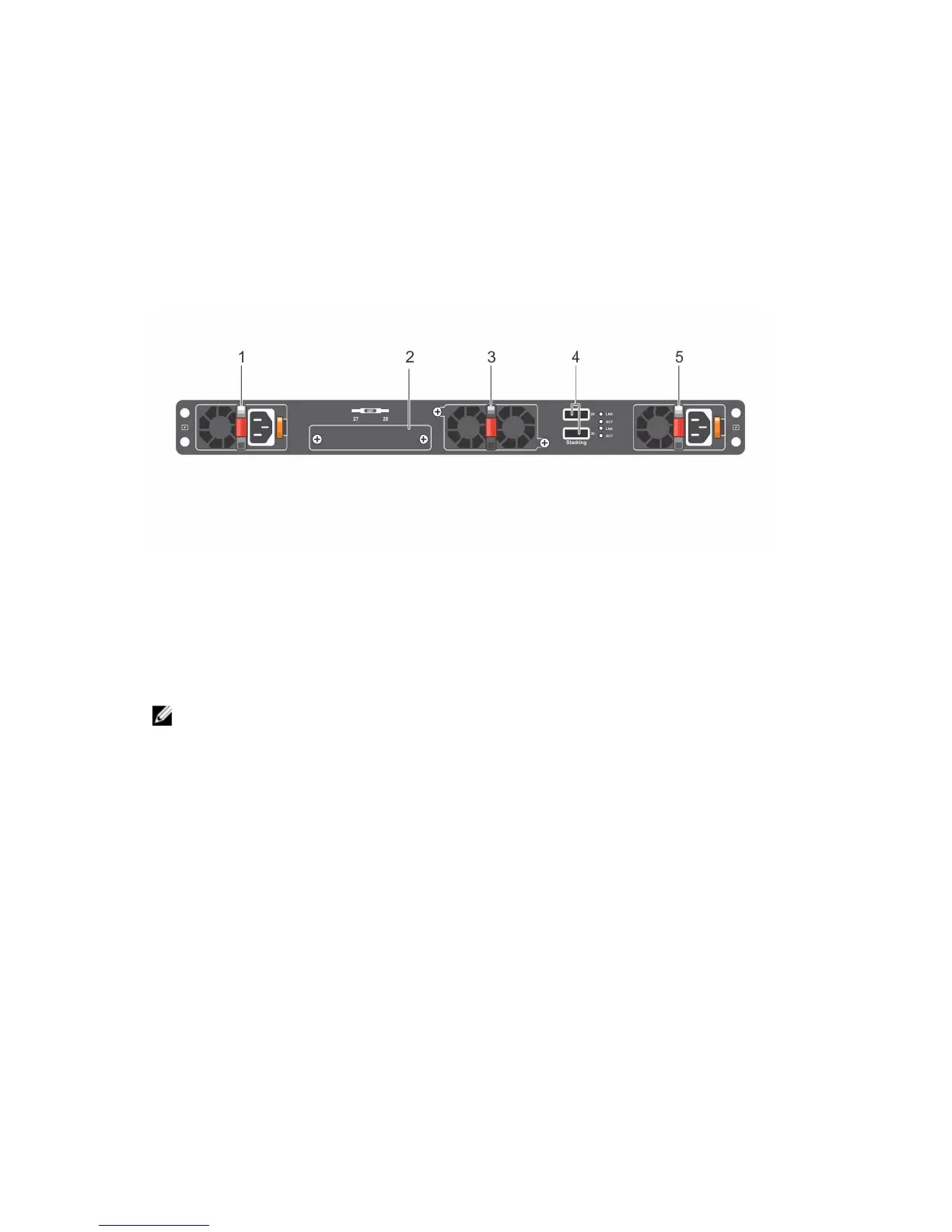

Figure 2. S3124 PSU Side View
1. PSU 1.
2. Module slot.
3. Fan tray.
4. Mini-SAS stacking ports.
5. PSU 2.
NOTE: The S3124 platform does not support stacking with Dell Networking OS 9.8(2.0).
