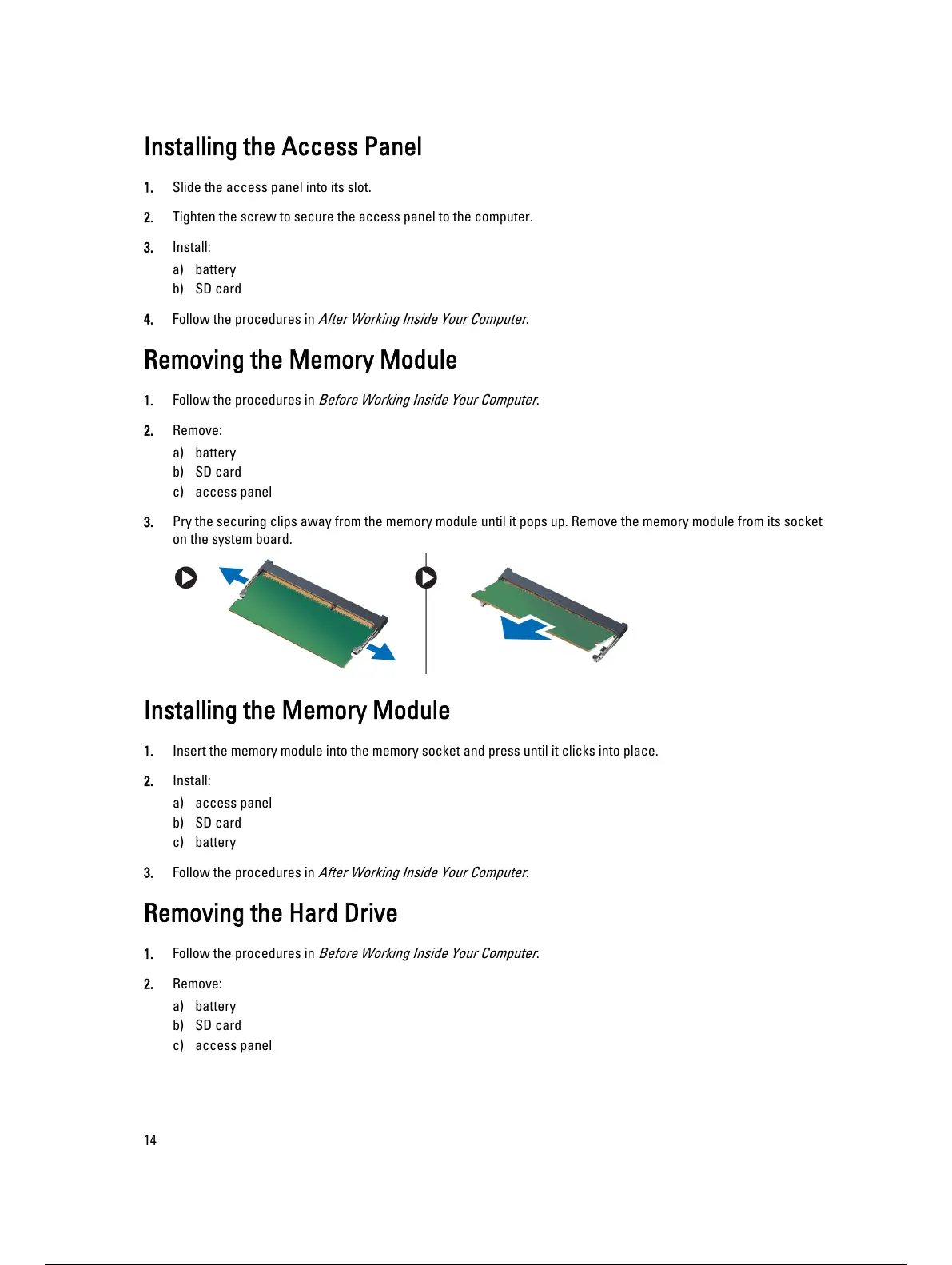

Installing the Access Panel
1. Slide the access panel into its slot.
2. Tighten the screw to secure the access panel to the computer.
3. Install:
a) battery
b) SD card
4. Follow the procedures in After Working Inside Your Computer .
Removing the Memory Module
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) SD card
c) access panel
3. Pry the securing clips away from the memory module until it pops up. Remove the memory module from its socket
on the system board.
Installing the Memory Module
1. Insert the memory module into the memory socket and press until it clicks into place.
2. Install:
a) access panel
b) SD card
c) battery
3. Follow the procedures in After Working Inside Your Computer .
Removing the Hard Drive
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) SD card
c) access panel
