Dell NOT18312 - Installing the Speakers

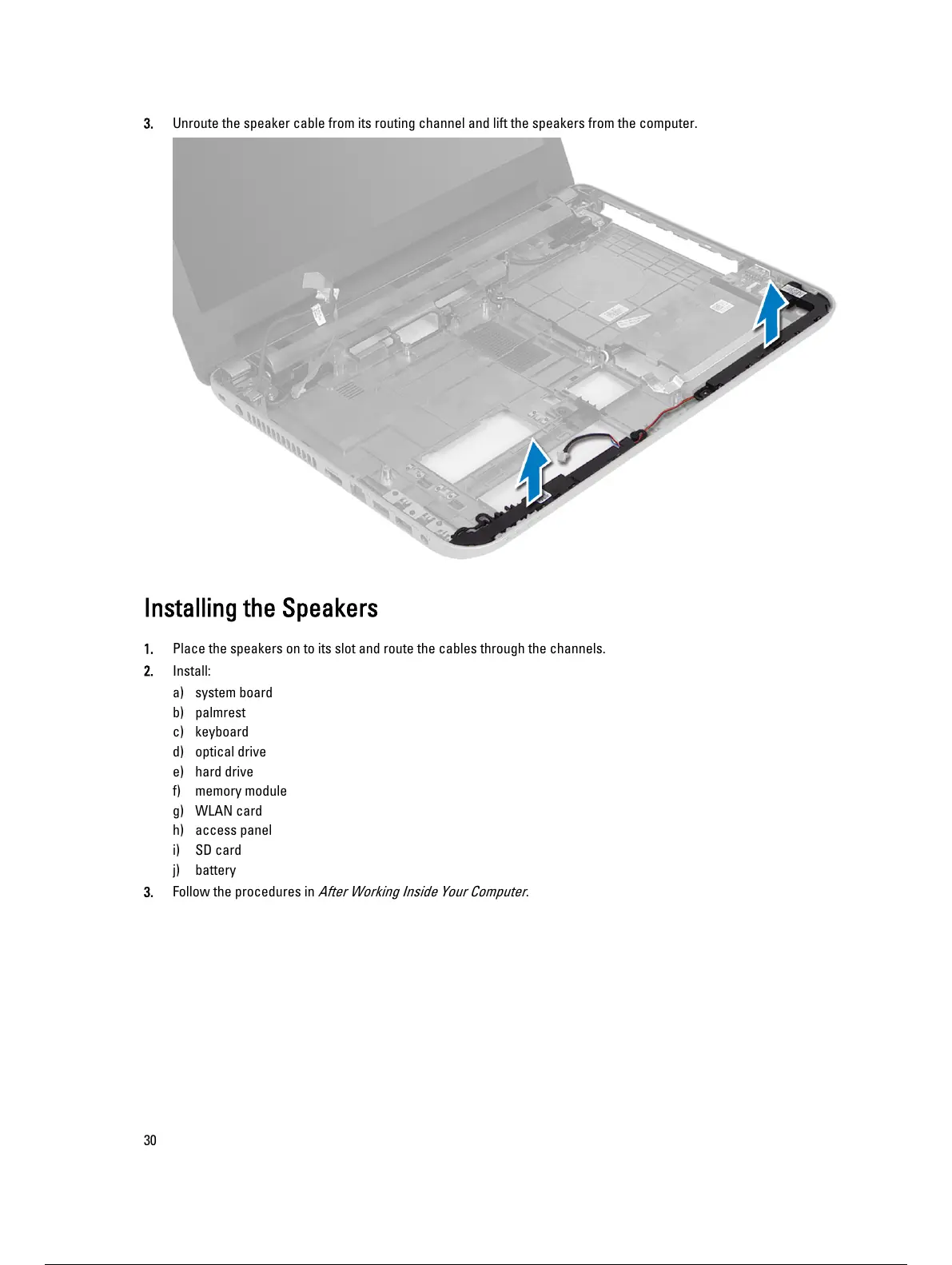

3. Unroute the speaker cable from its routing channel and lift the speakers from the computer.
Installing the Speakers
1. Place the speakers on to its slot and route the cables through the channels.
2. Install:
a) system board
b) palmrest
c) keyboard
d) optical drive
e) hard drive
f) memory module
g) WLAN card
h) access panel
i) SD card
j) battery
3. Follow the procedures in After Working Inside Your Computer .
