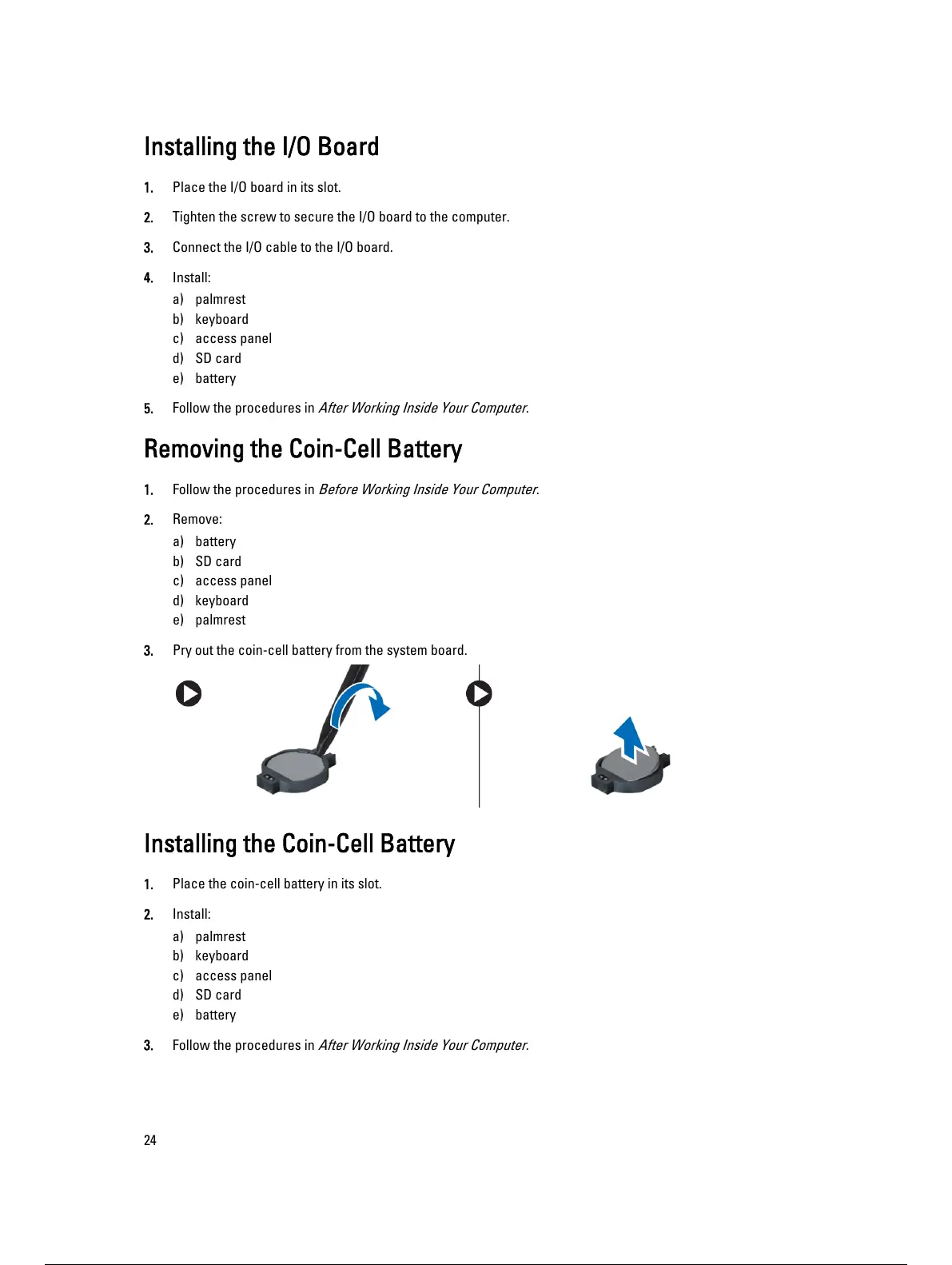

Installing the I/O Board
1. Place the I/O board in its slot.
2. Tighten the screw to secure the I/O board to the computer.
3. Connect the I/O cable to the I/O board.
4. Install:
a) palmrest
b) keyboard
c) access panel
d) SD card
e) battery
5. Follow the procedures in After Working Inside Your Computer .
Removing the Coin-Cell Battery
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) SD card
c) access panel
d) keyboard
e) palmrest
3. Pry out the coin-cell battery from the system board.
Installing the Coin-Cell Battery
1. Place the coin-cell battery in its slot.
2. Install:
a) palmrest
b) keyboard
c) access panel
d) SD card
e) battery
3. Follow the procedures in After Working Inside Your Computer .
