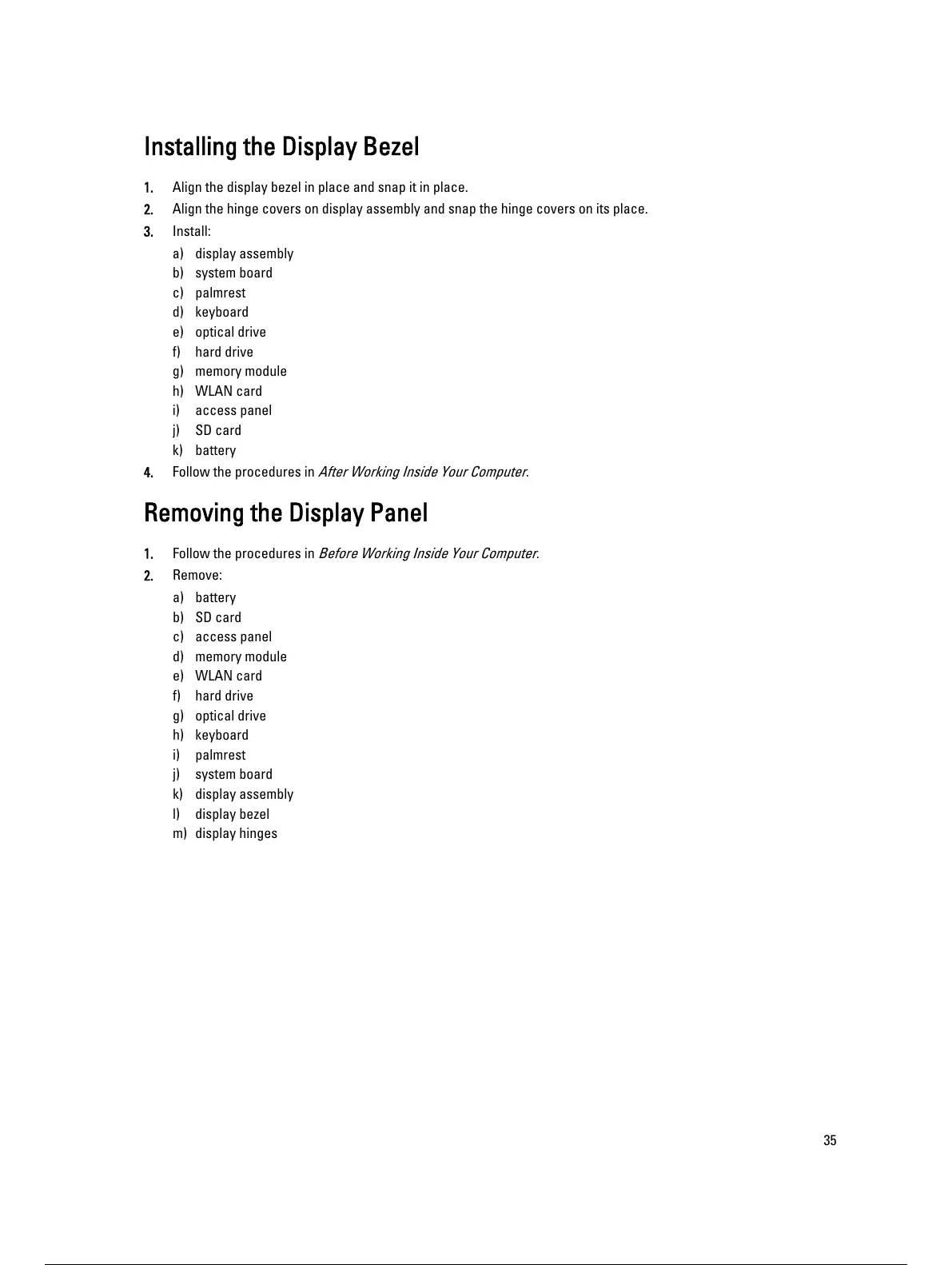

Installing the Display Bezel
1. Align the display bezel in place and snap it in place.
2. Align the hinge covers on display assembly and snap the hinge covers on its place.
3. Install:
a) display assembly
b) system board
c) palmrest
d) keyboard
e) optical drive
f) hard drive
g) memory module
h) WLAN card
i) access panel
j) SD card
k) battery
4. Follow the procedures in After Working Inside Your Computer .
Removing the Display Panel
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) SD card
c) access panel
d) memory module
e) WLAN card
f) hard drive
g) optical drive
h) keyboard
i) palmrest
j) system board
k) display assembly
l) display bezel
m) display hinges
