Dell NOT18312 - Removing the Camera Module

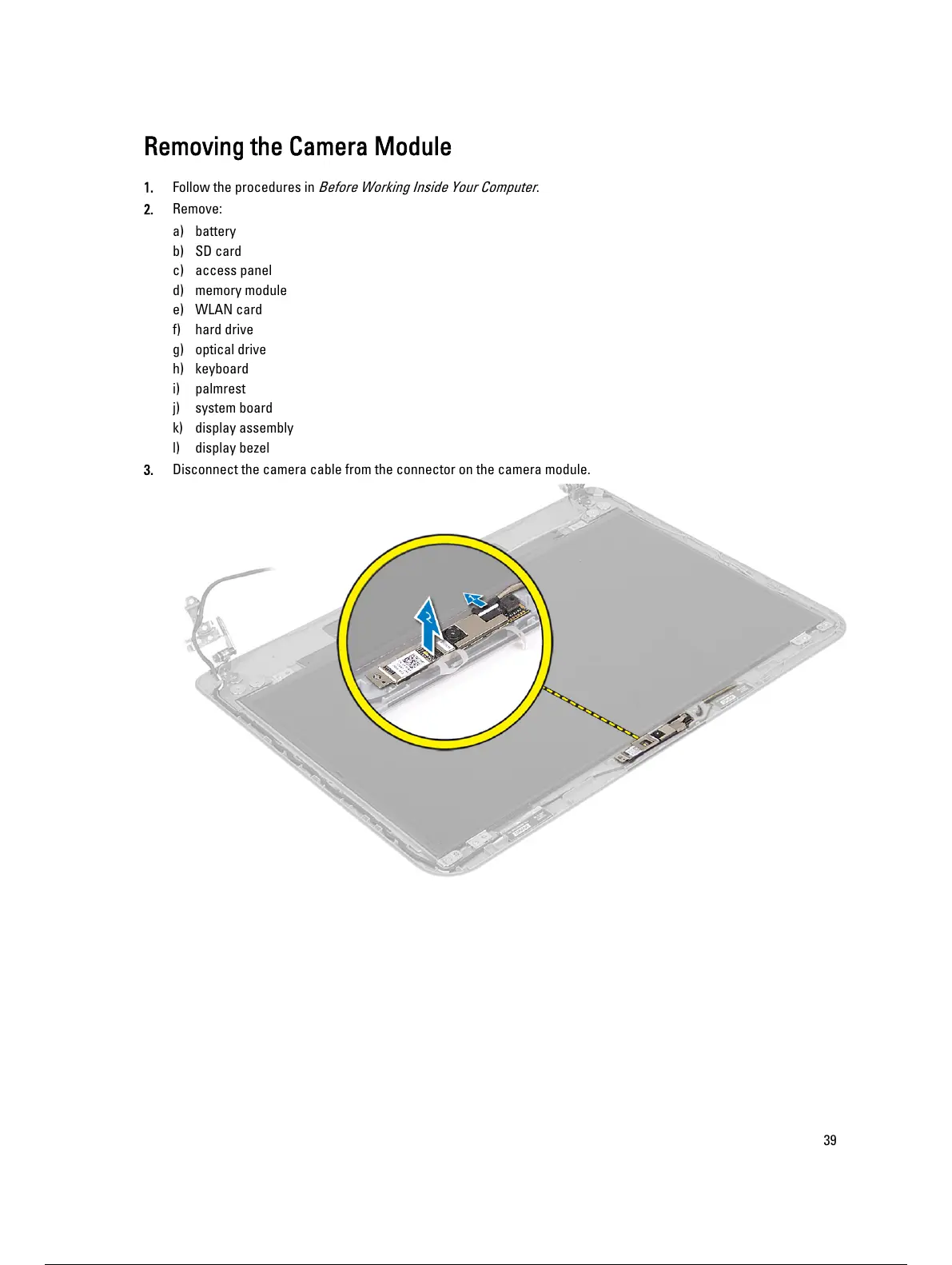

Removing the Camera Module
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) SD card
c) access panel
d) memory module
e) WLAN card
f) hard drive
g) optical drive
h) keyboard
i) palmrest
j) system board
k) display assembly
l) display bezel
3. Disconnect the camera cable from the connector on the camera module.
39
