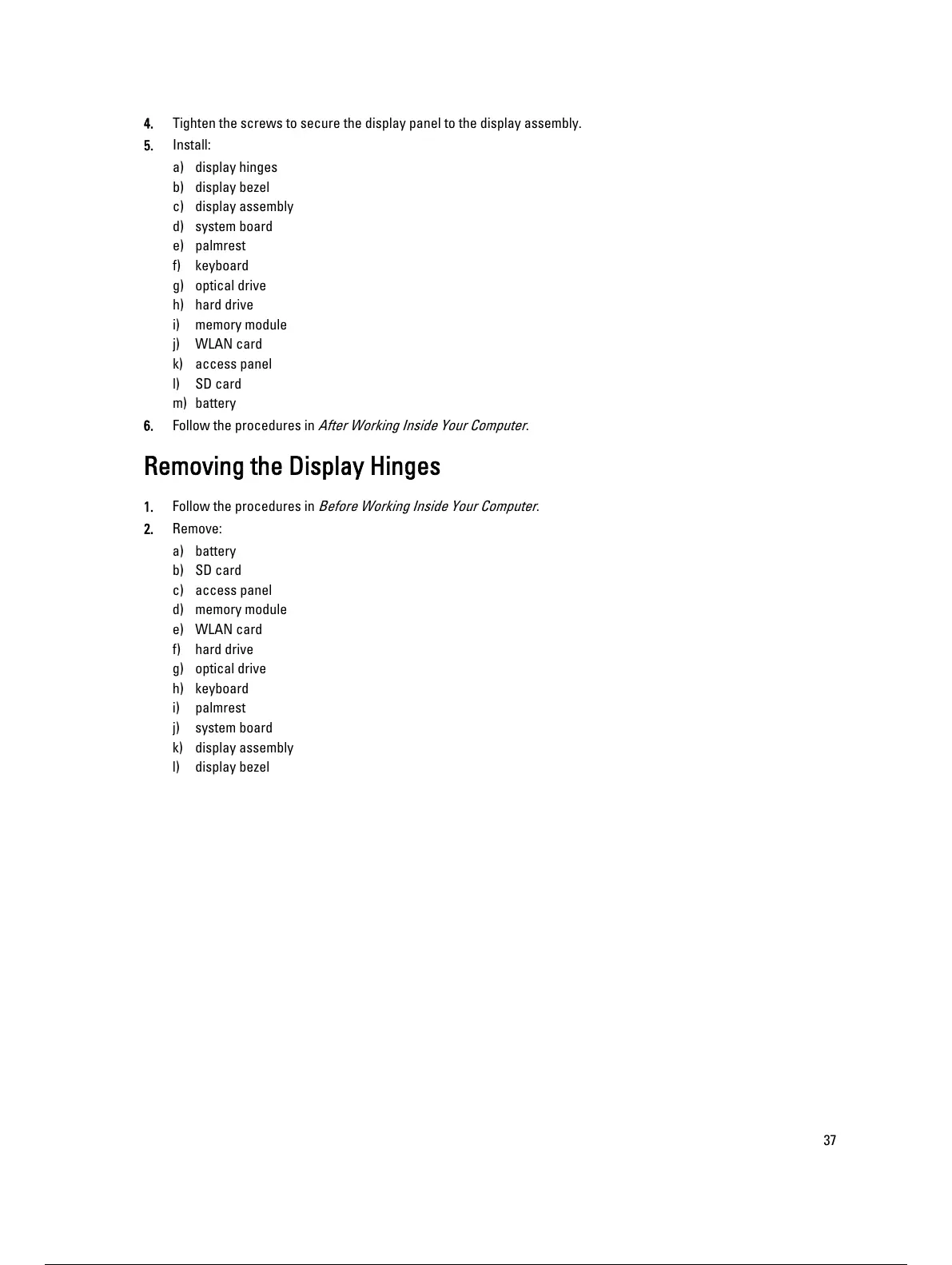

4. Tighten the screws to secure the display panel to the display assembly.
5. Install:
a) display hinges
b) display bezel
c) display assembly
d) system board
e) palmrest
f) keyboard
g) optical drive
h) hard drive
i) memory module
j) WLAN card
k) access panel
l) SD card
m) battery
6. Follow the procedures in After Working Inside Your Computer .
Removing the Display Hinges
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) SD card
c) access panel
d) memory module
e) WLAN card
f) hard drive
g) optical drive
h) keyboard
i) palmrest
j) system board
k) display assembly
l) display bezel
37
