Removing the hard-drive assembly
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. stand
b. back cover

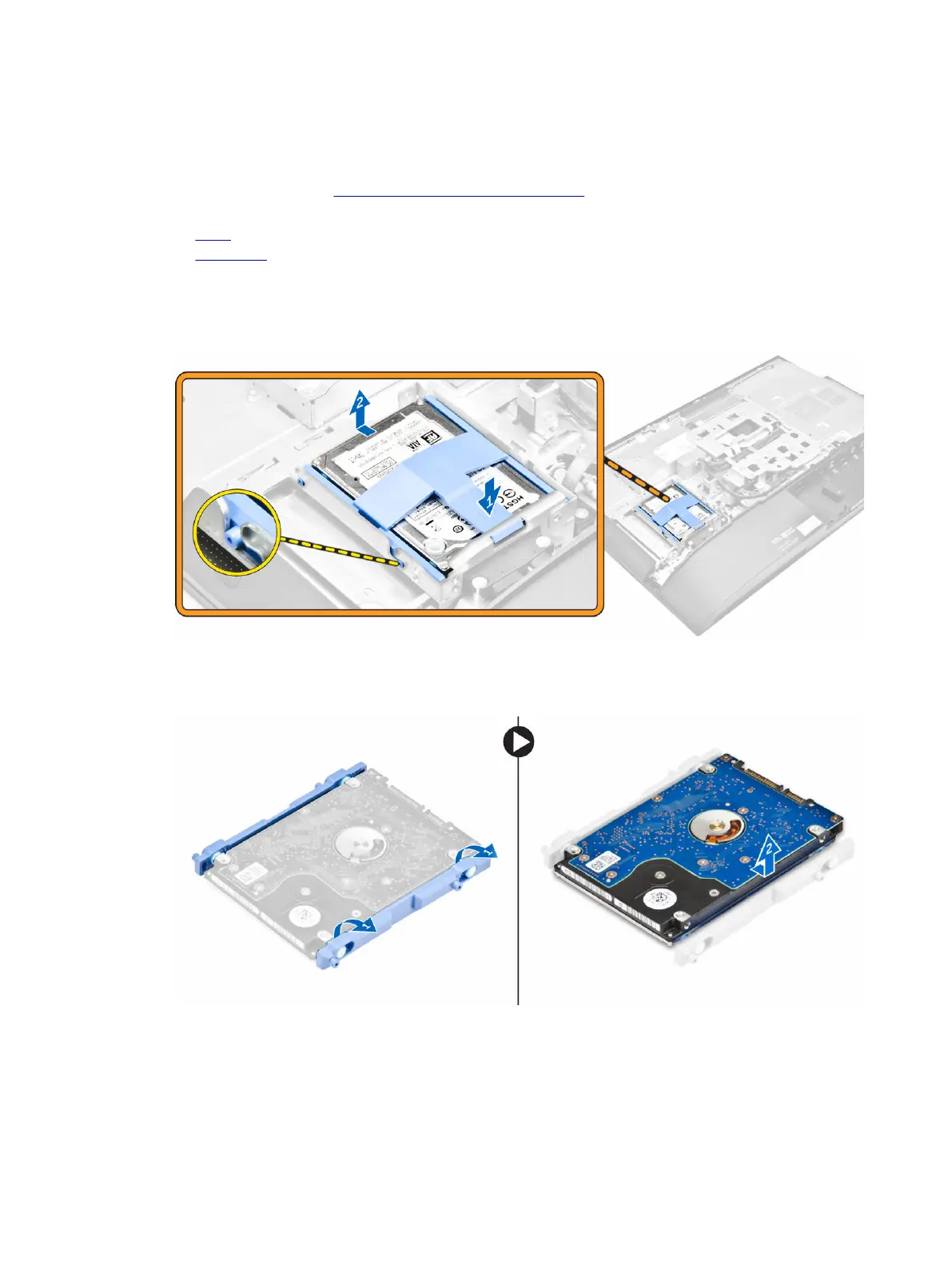

3. Perform the following steps as shown in the illustration:
a. Press the tab on the bracket and slide the hard-drive assembly until the tabs are released from
either side of the assembly [1].
b. Slide the hard-drive assembly upwards to remove it from the computer [2].
4. Perform the following steps as shown in the illustration:
a. Pry the edges of the bracket to release the hard drive [1].
b. Slide the hard drive and lift it away from the bracket [2].
14
