4. Follow the procedure in After Working Inside Your Computer.
Removing the processor fan
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. stand
b. back cover
c. system-board shield
d. power-supply unit
e. VESA mount bracket

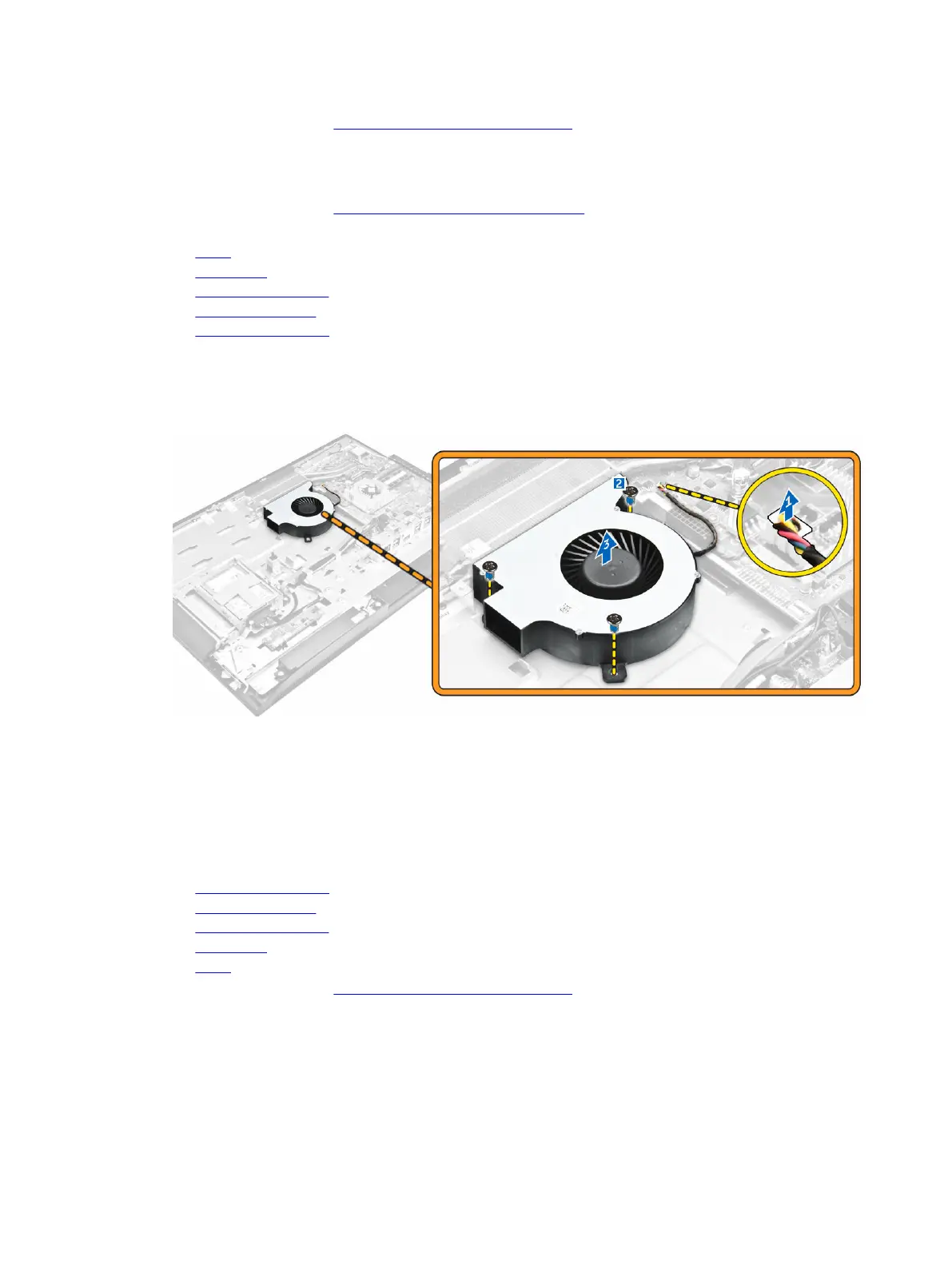

3. Perform the following steps as shown in the illustration:
a. Disconnect the processor-fan cable from the connector on the system board [1].
b. Remove the screws that secure the processor fan to the computer [2].
c. Lift the processor fan away from the computer [3].
Installing the processor fan
1. Align and place the processor fan in the slot on the chassis.
2. Tighten the screws to secure the processor fan to the system board.
3. Connect the processor-fan cable to the connector on the system board.
4. Install the:
a. VESA mount bracket
b. power-supply unit
c. system-board shield
d. back cover
e. stand
5. Follow the procedure in After Working Inside Your Computer.
