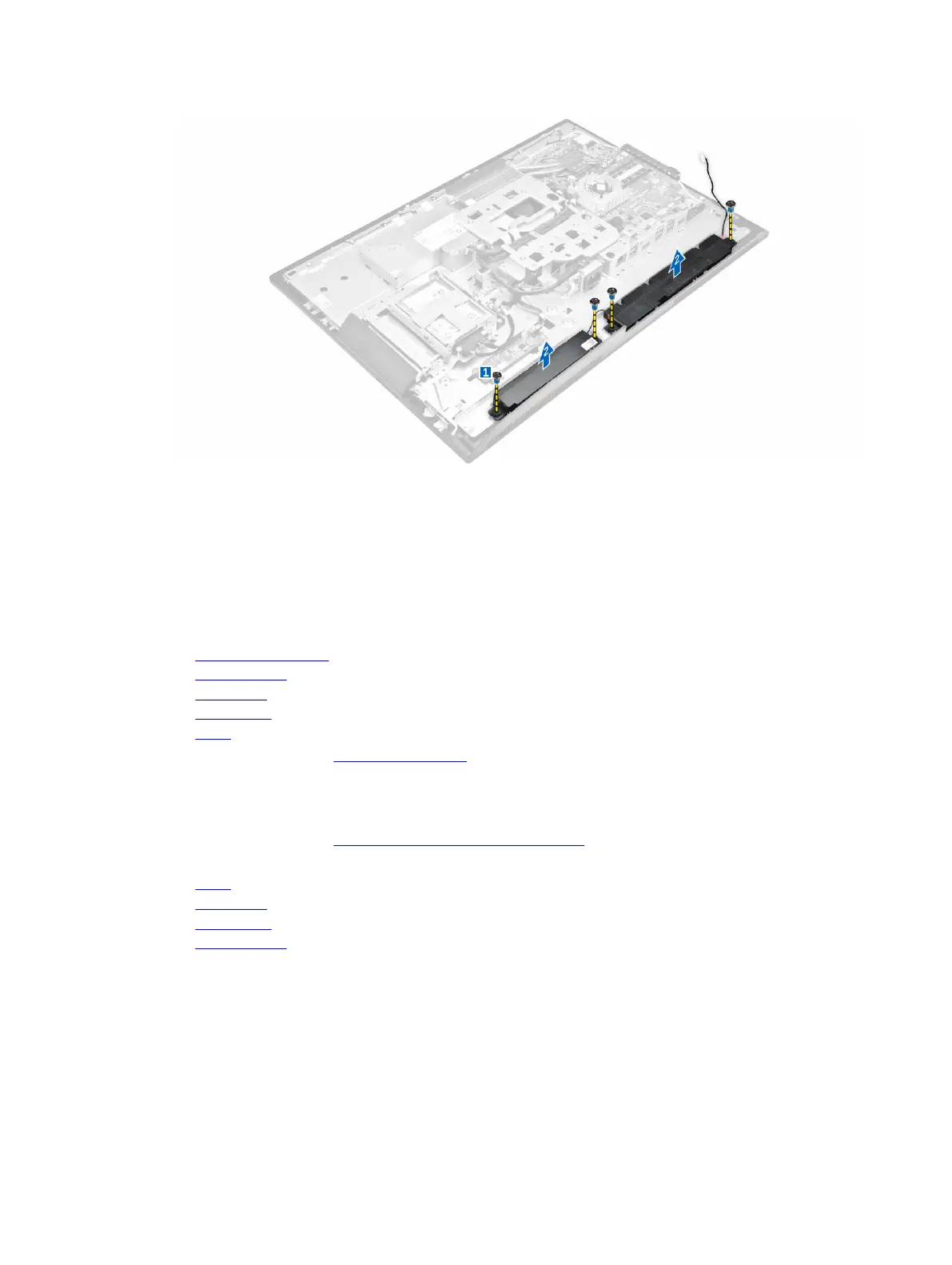

Installing the speakers
1. Align the speaker module on the slot in the chassis.
2. Tighten the screws to secure the speaker to the chassis.
3. Thread the speaker cables via the clips.
4. Connect the speaker cable to the connector on the system board.
5. Install:
a. system-board shield
b. speaker cover
c. back cover
d. cable cover
e. stand
6. Follow the procedure in system-board shield.
Removing the converter board
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. stand
b. back cover
c. cable cover
d. speaker cover
3. Perform the following steps as shown in the illustration:
a. Disconnect the convertor-board cable from the converter board [1, 2].
b. Disconnect the display-backlight cable from the converter board [3].
