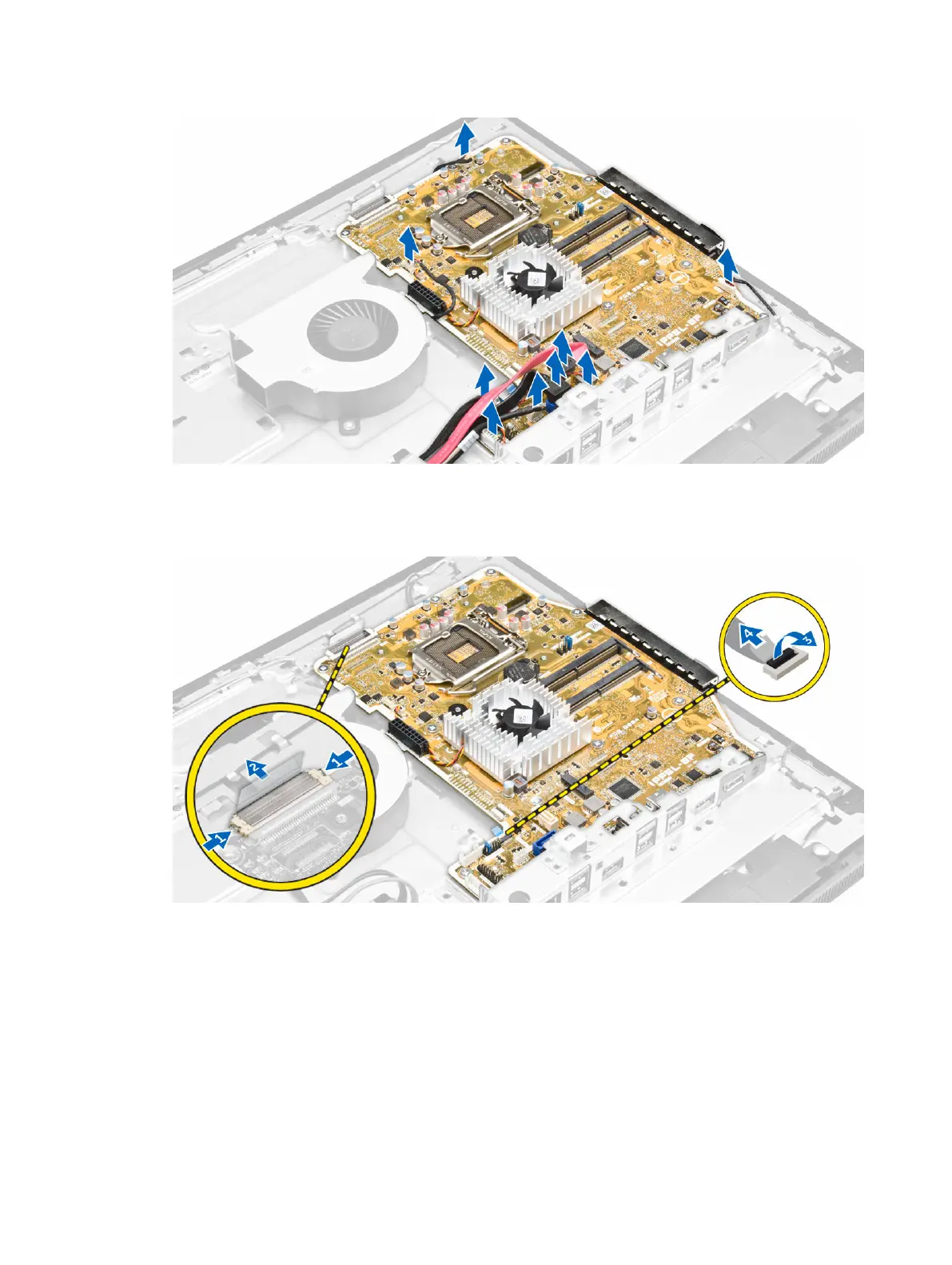

6. Perform the following steps as shown in the illustration:
a. Press the latches on either side of the connector and pull the LVDS cable to disconnect it from
the system board [1,2].
b. Lift the latch and disconnect the cable from the connector [3,4].
7. Perform the following steps as shown in the illustration.
a. Remove the screws that secure the system board to the chassis [1].
b. Slide the system board and lift it away from the chassis [2].
32
