Dell™OptiPlex™760ServiceManual
Drives
Drives
Your computer supports:
l One SATA (serial ATA) hard drive
l One optional Dell D-module optical drive, second hard drive, or floppy drive in the module bay (see Module Bay for information on installing and
removing devices in the module bay).

General Installation Guidelines

Connecting Drive Cables

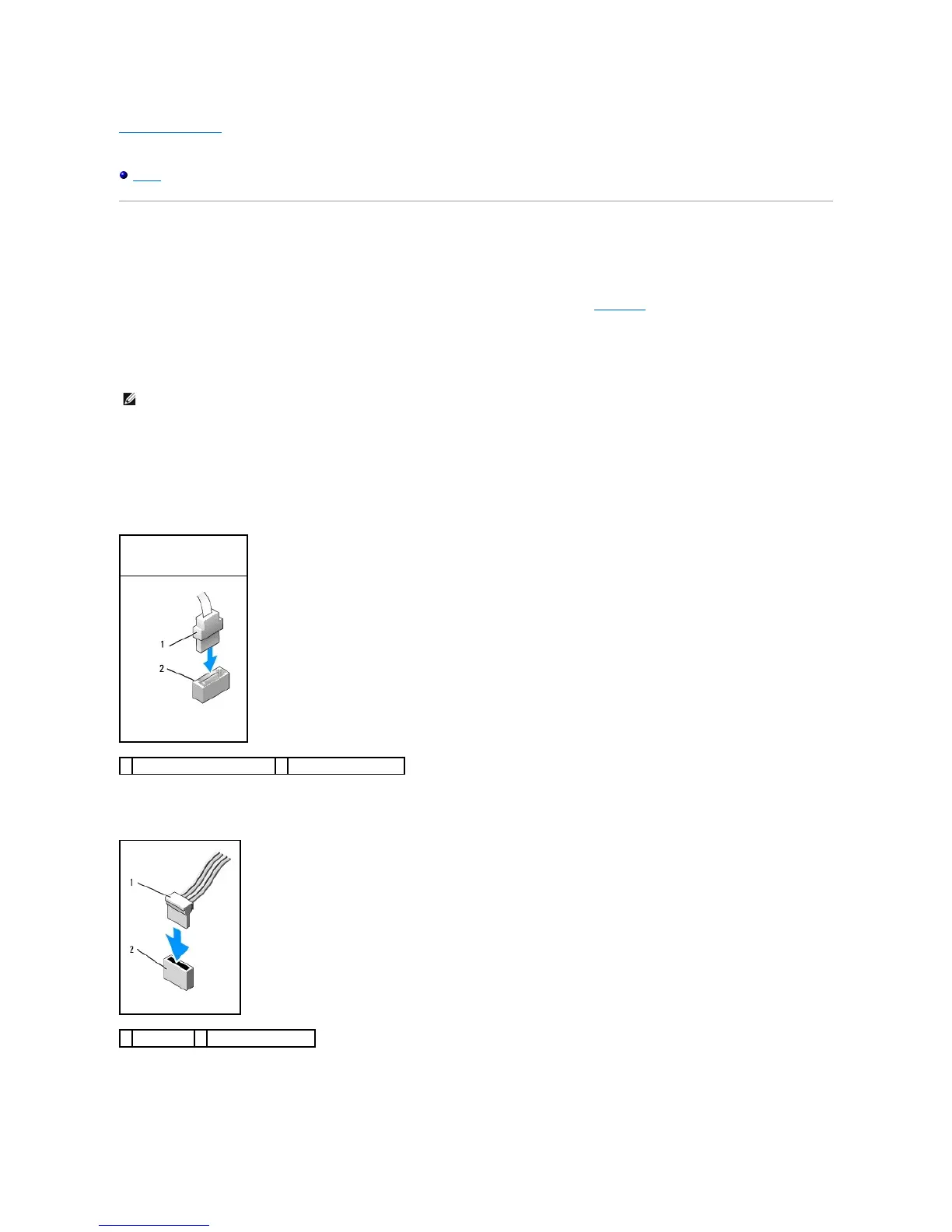

When you install a drive, you connect two cables—a DC power cable and a data interface cable—to the back of the drive.

Data Interface Connectors

Power Cable Connectors

Connecting and Disconnecting Drive Cables
NOTE: For information on installing D-module drives, see the documentation that came with your optional device.

SATA Connector
1
data interface cable connector
2
data interface connector
1
power cable
2
power input connector
