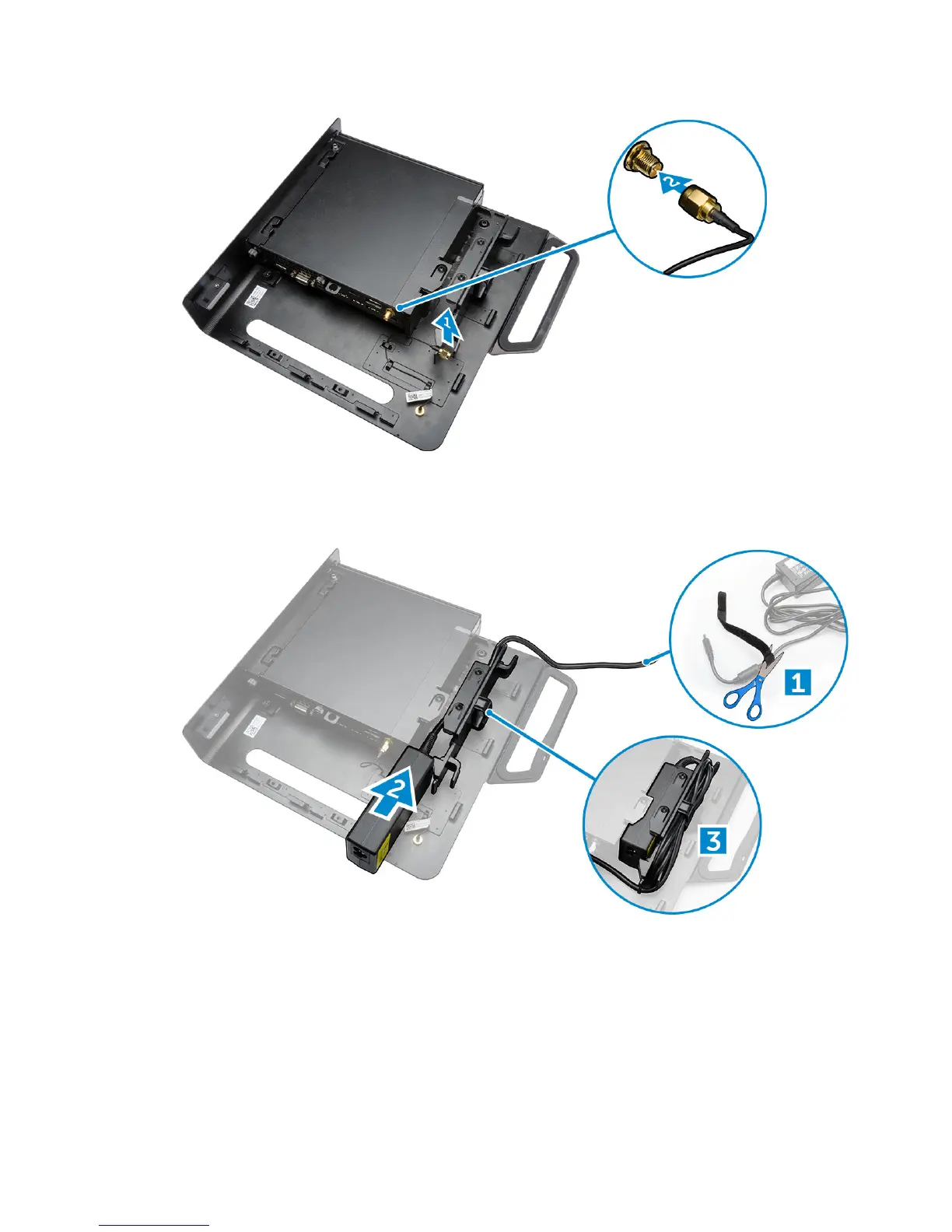

4. Perform the following steps as shown in the illustration:
a. Cut the strap of power adapter cable [1].
b. Slide the power adapter into the slot [2].
c. Route the cable through the clip [3].
5. Perform the following steps as shown in the illustration:
a. Route the cable through the clip [1].
b. Connect the cable to the adapter [2].
20
