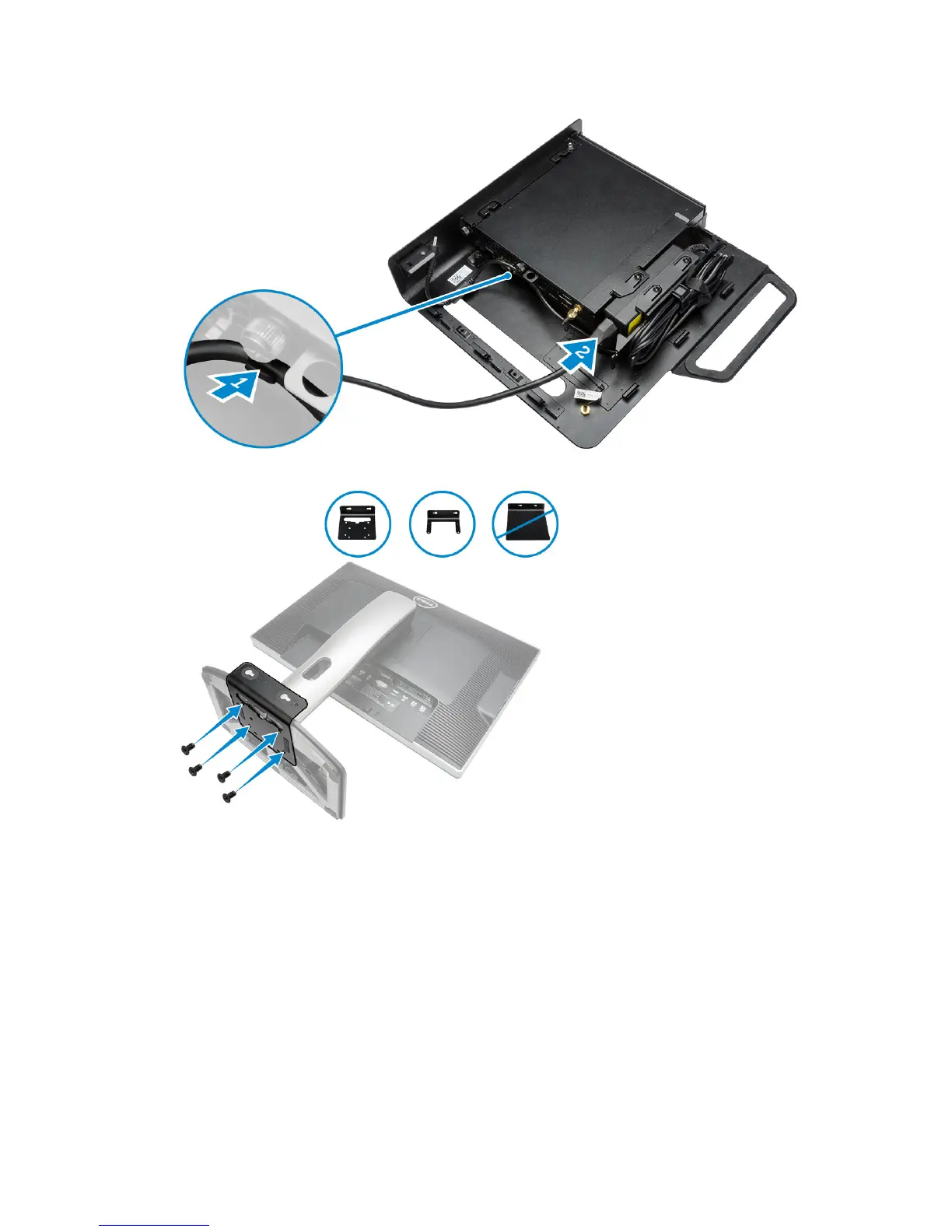

6. Align the PUZ plate to the bottom of monitor and tighten the screws.
7. Perform the following steps as shown in the illustration:
a. Slide and lock the chassis to the PUZ plate [1].
b. Rotate the screw in clockwise direction to secure the computer [2].
c. Flip the computer along with the monitor [3].
