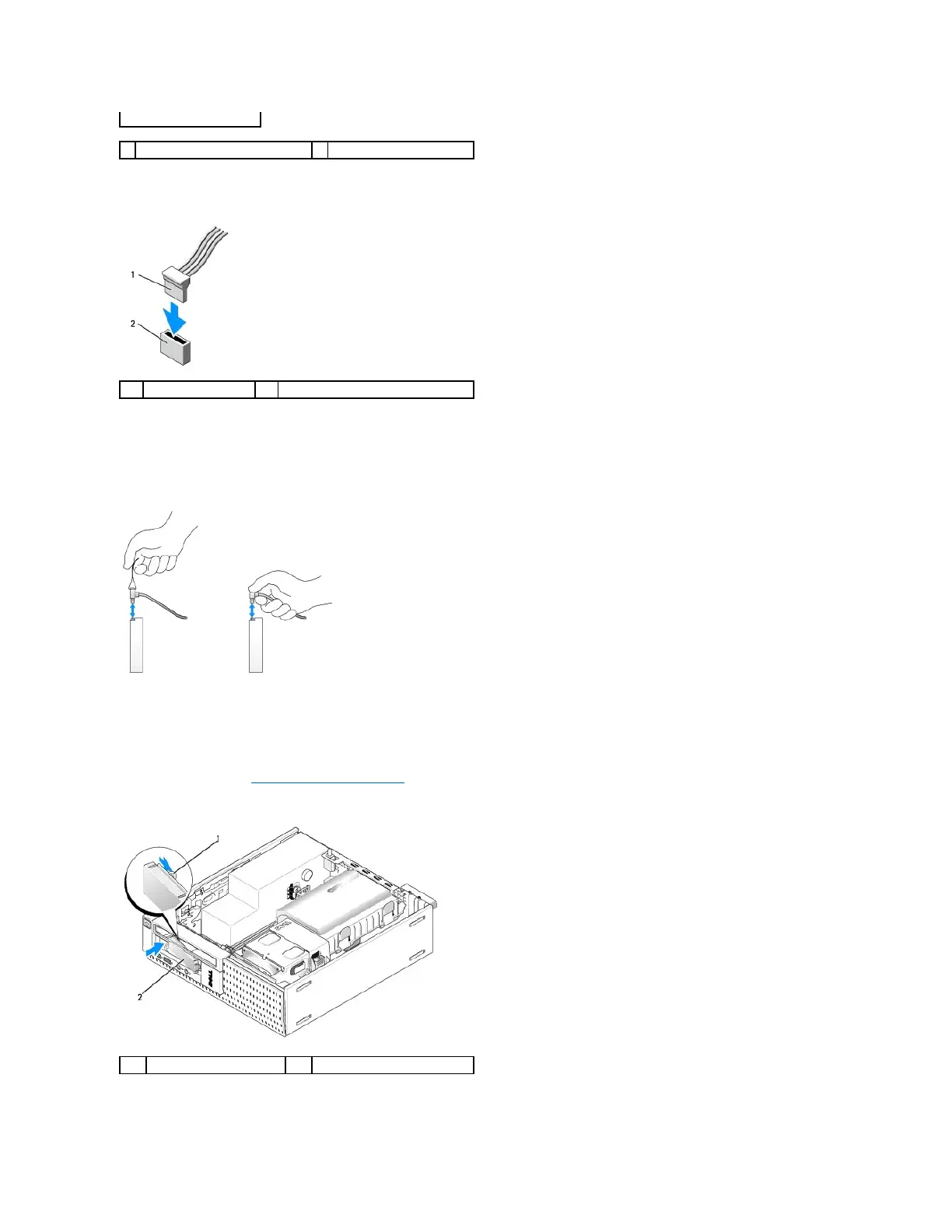

Power Cable Connectors
Connecting and Disconnecting Drive Cables
When removing an cable with a pull-tab, grasp the colored pull-tab and pull until the connector detaches.
When connecting and disconnecting a SATA data cable, hold the cable by the black connector at each end.
Removing Drive Bay Inserts
If you are installing a new drive:
1. Perform the procedure Before Working on Your Computer.
2. Press the insert retention tab on the inside of the bezel to release the drive bay insert. Remove the drive bay insert from the front of the bezel.
