Dell™Optiplex™960MiniTower/Desktop/SmallFormFactorServiceManual

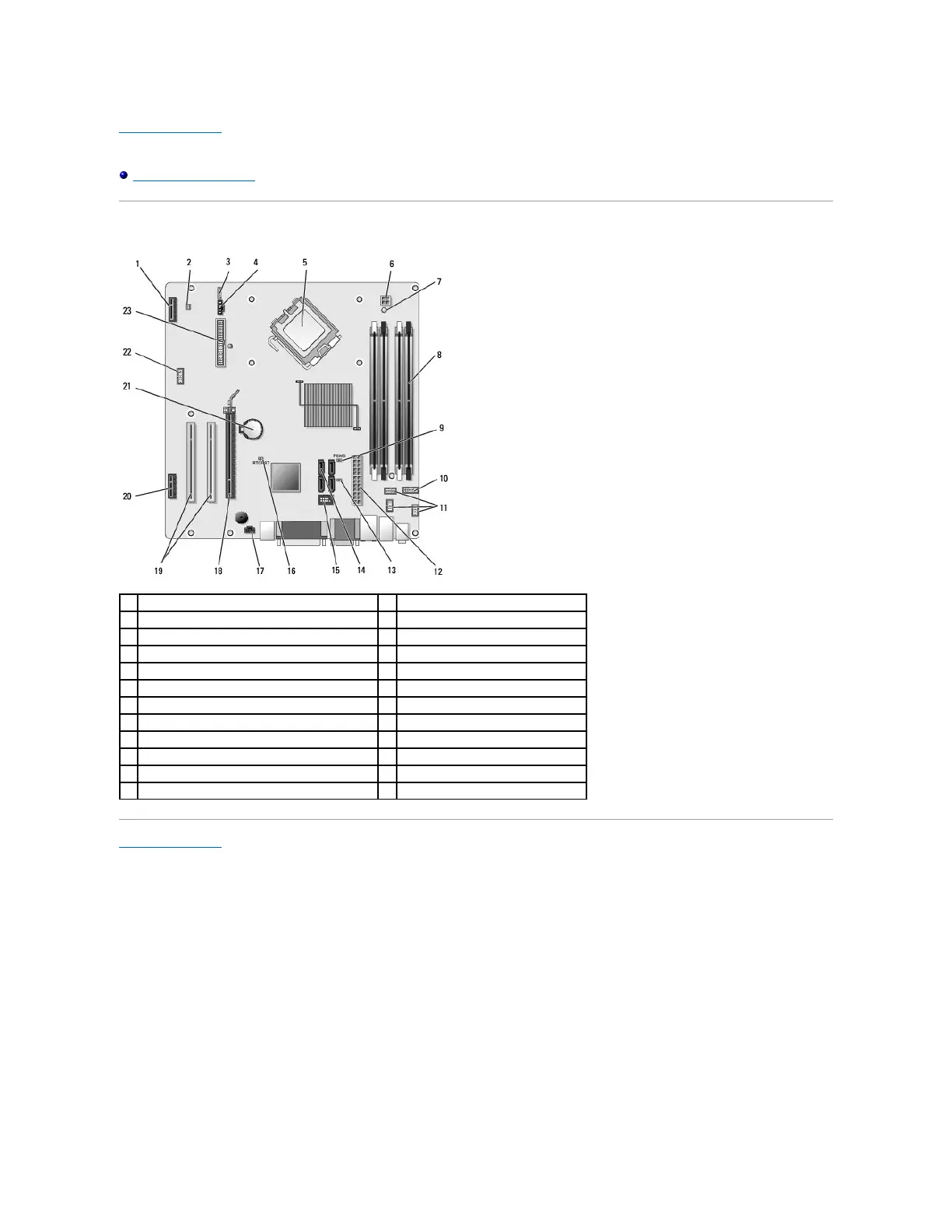

System Board Components
System Board Components
Back to Contents Page

1
connector for optional wireless card (PCIE_WLS1)
2
thermal sensor connector (THRML1)
3
connector for optional internal speaker (INT_SPKR1)
4
fan connector (FAN_CPU1)
5
processor connector (CPU)
6
processor power connector (12VPOWER)
7
auxiliary power LED (AUX_POWER)
8
memory module connectors (4)
9
password reset pins (PSWD)
10
system status LEDs panel connector
11
I/O assembly connectors (3)
12
power supply connector (POWER)
13
service mode jumper (SERVICEMODE)
14
SATA drive connectors (4)
15
internal USB connector for flex bay
16
BIOS/RTC reset jumper pins
17
intrusion switch connector (INTRUDER)
18
PCIe x16 connector (SLOT1)
19
PCI connector (SLOT2, SLOT3)
20
PCIe x1 connector (SLOT4)
21
RTC battery socket
22
second serial port connector
23
floppy disk connector (DSKT2)


