10. Replace the optical drive, if removed earlier (see Replacing or Installing an Optical Drive).
11. Replace the drive bay caddy.
12. Replace the drive bezel (see Replace the Drive Bezel).
13. Perform the procedure After Working on Your Computer.
14. Reboot your computer and exercise the I/O panel to ensure that it is working properly.
Remove the Bezel
1. Perform the procedure Before Working on Your Computer.

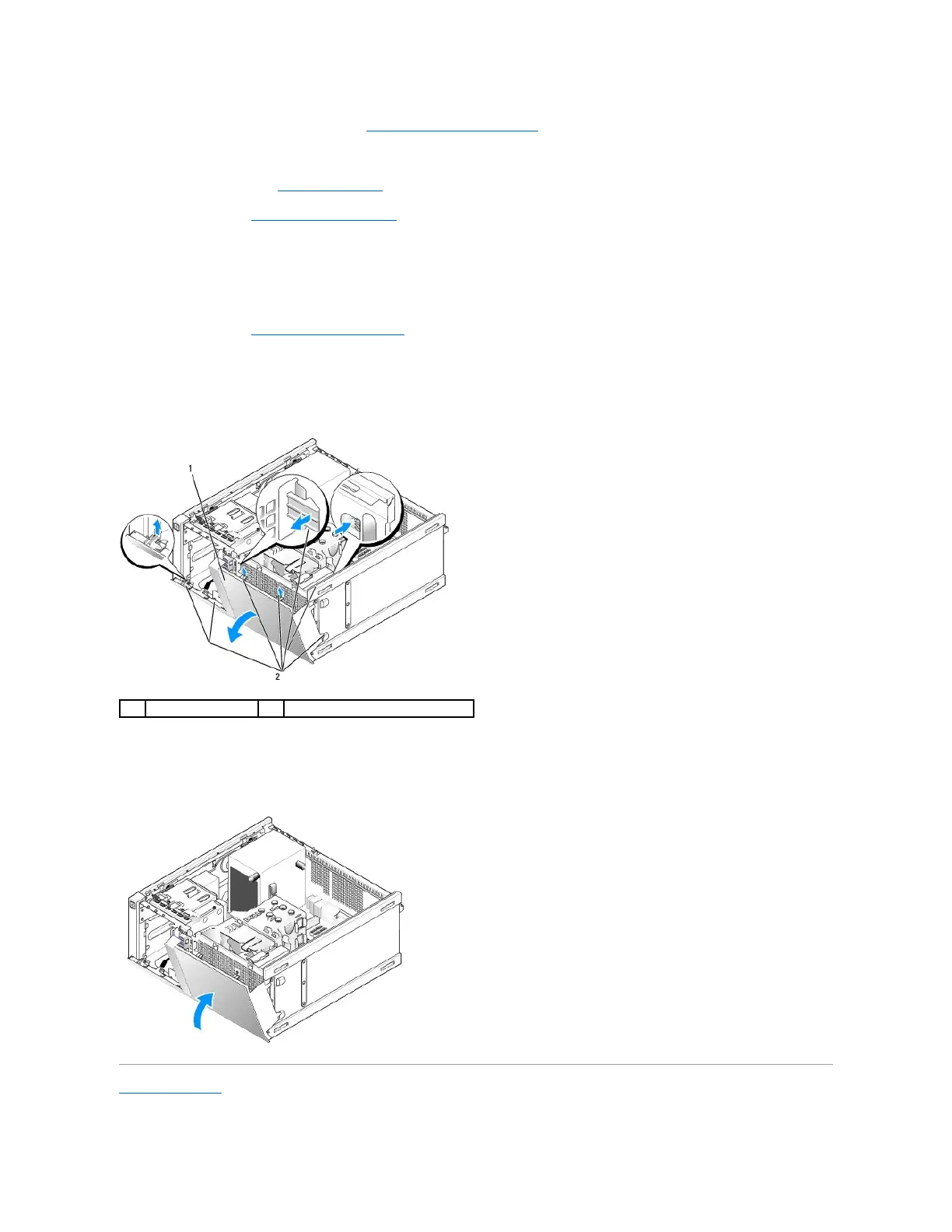

2. Release the seven securing tabs located behind the bezel
3. Roll the bezel away from the right (upper) side of the computer.
4. Lift the bezel out of the tab and slot hinge on the left side (down) of the computer.
Replace the Bezel
To replace the bezel, insert the hooks at the left side (bottom) of the bezel into the slots provided at the base of the chassis, and rotate the bezel toward the
chassis until it snaps into place.
