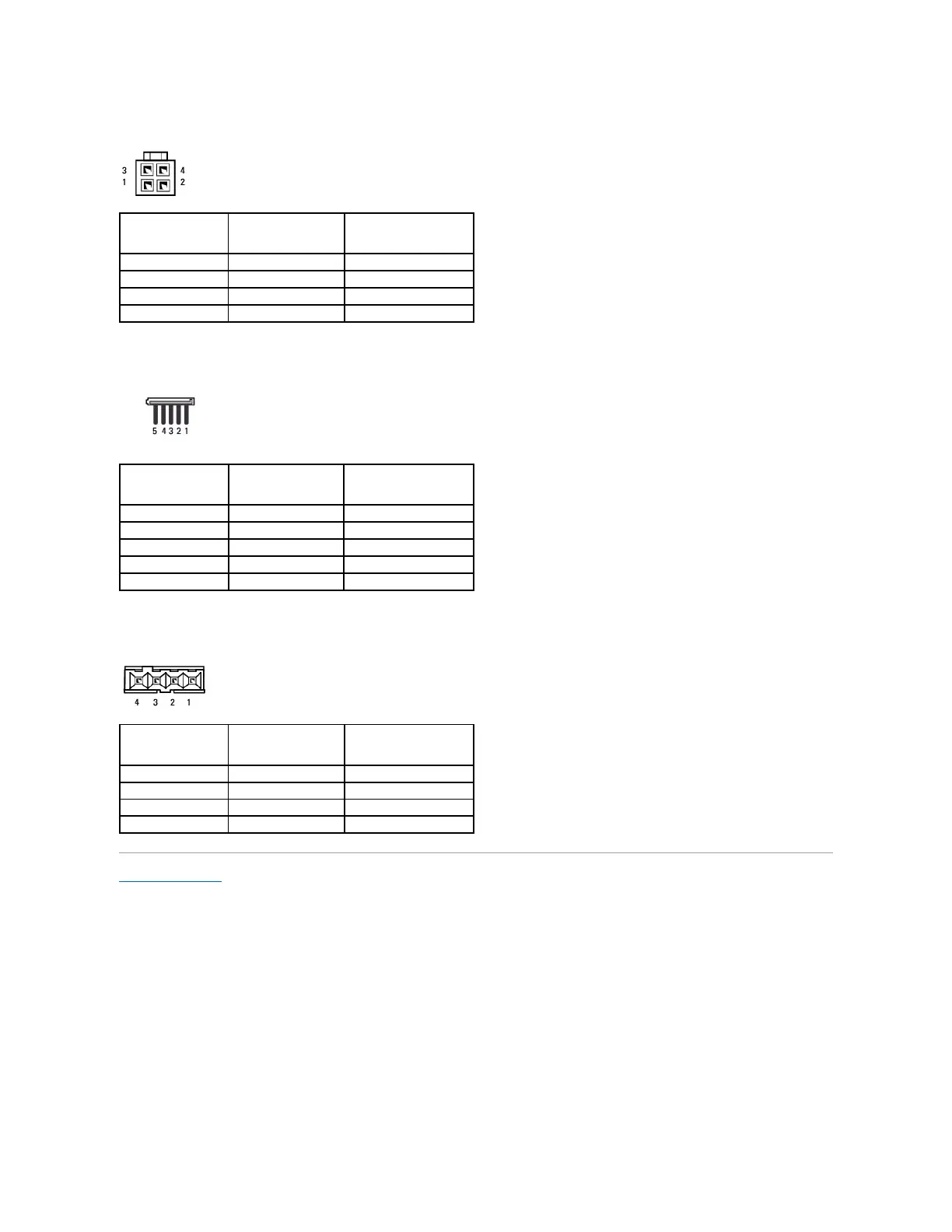

Dell OptiPlex 960 - DC Power Connector P2; DC Power Connectors P3, P5, P8, and P9; DC Power Connector P7

DC Power Connector P2

DC Power Connectors P3, P5, P8, and P9

DC Power Connector P7
Back to Contents Page


Pin Number

Signal Name

18-AWG Wire
1
GND
Black
2
GND
Black
3
+12 VADC
Yellow
4
+12 VADC
Yellow

Pin Number

Signal name

18-AWG Wire
1
+3.3 VDC
Orange
2
GND
Black
3
+5 VDC
Red
4
GND
Black
5
+12 VBDC
White

Pin Number

Signal Name

22-AWG Wire
1
+5 VDC
Red
2
GND
Black
3
GND
Black
4
+12 VDC
Yellow
