Dell OptiPlex 960 - Removing the Processor


4. Reroute cables removed earlier through the cable guides on the heatsink assembly. Reconnect them as needed.


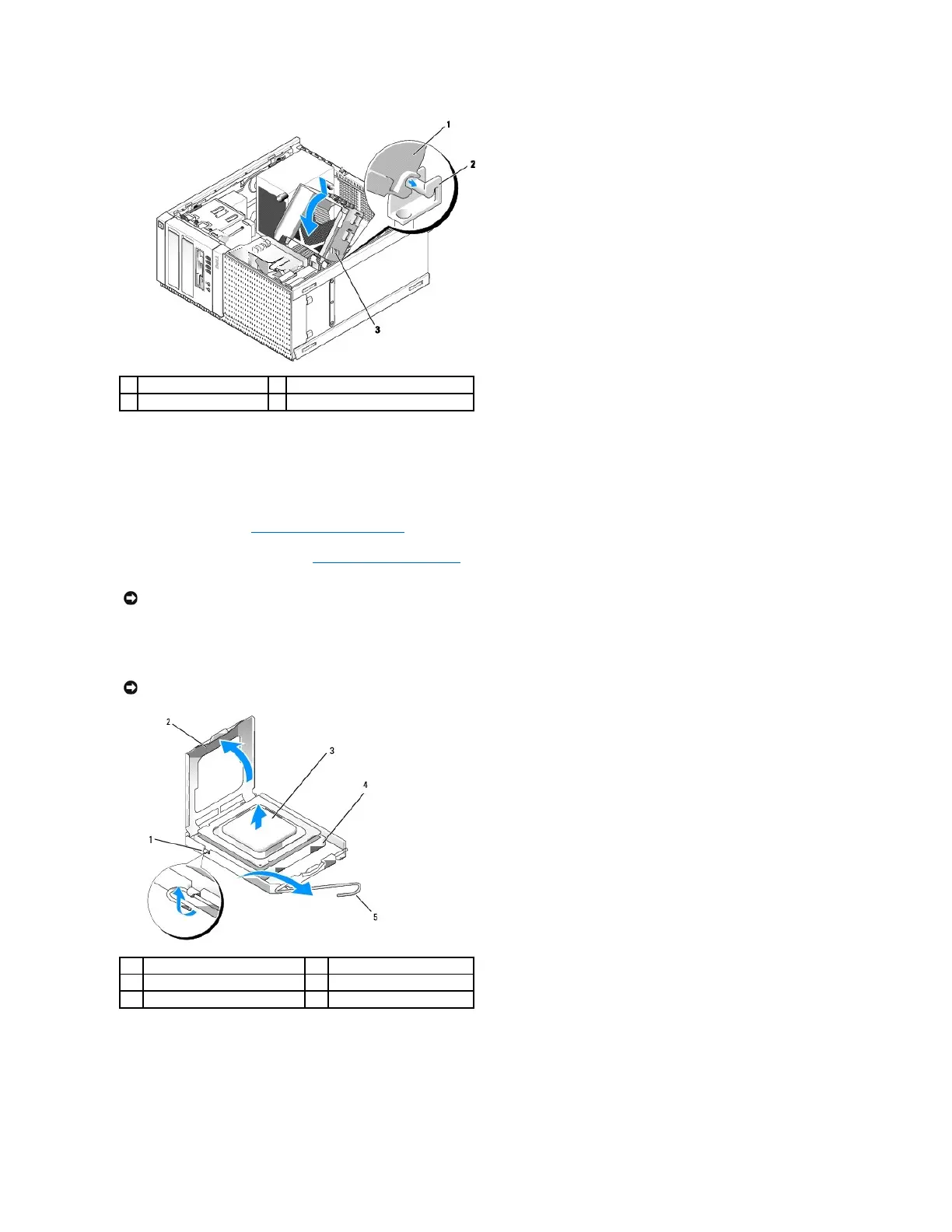

Removing the Processor

1. Perform the procedure Before Working on Your Computer.

2. Remove the heatsink assembly (see Removing the Heatsink Assembly).


3. Open the processor cover by sliding the release lever from under the center cover latch on the socket. Then, pull the lever back to release the
processor.


4. Gently remove the processor from the socket.
Leave the release lever extended in the release position so that the socket is ready for the new processor.

1
heatsink assembly
2
heat-sink assembly bracket
3
captive screw (2)


NOTICE: Unless a different heatsink is required for the new processor, reuse the original heatsink assembly when you replace the processor.
NOTICE: When replacing the processor, do not touch any of the pins inside the socket or allow any objects to fall on the pins in the socket.
1
center cover latch
2
processor cover
3
processor
4
socket
5
release lever


