Dell OptiPlex 960 - DC Power Connector P2; DC Power Connector P4; DC Power Connector P5 and P6



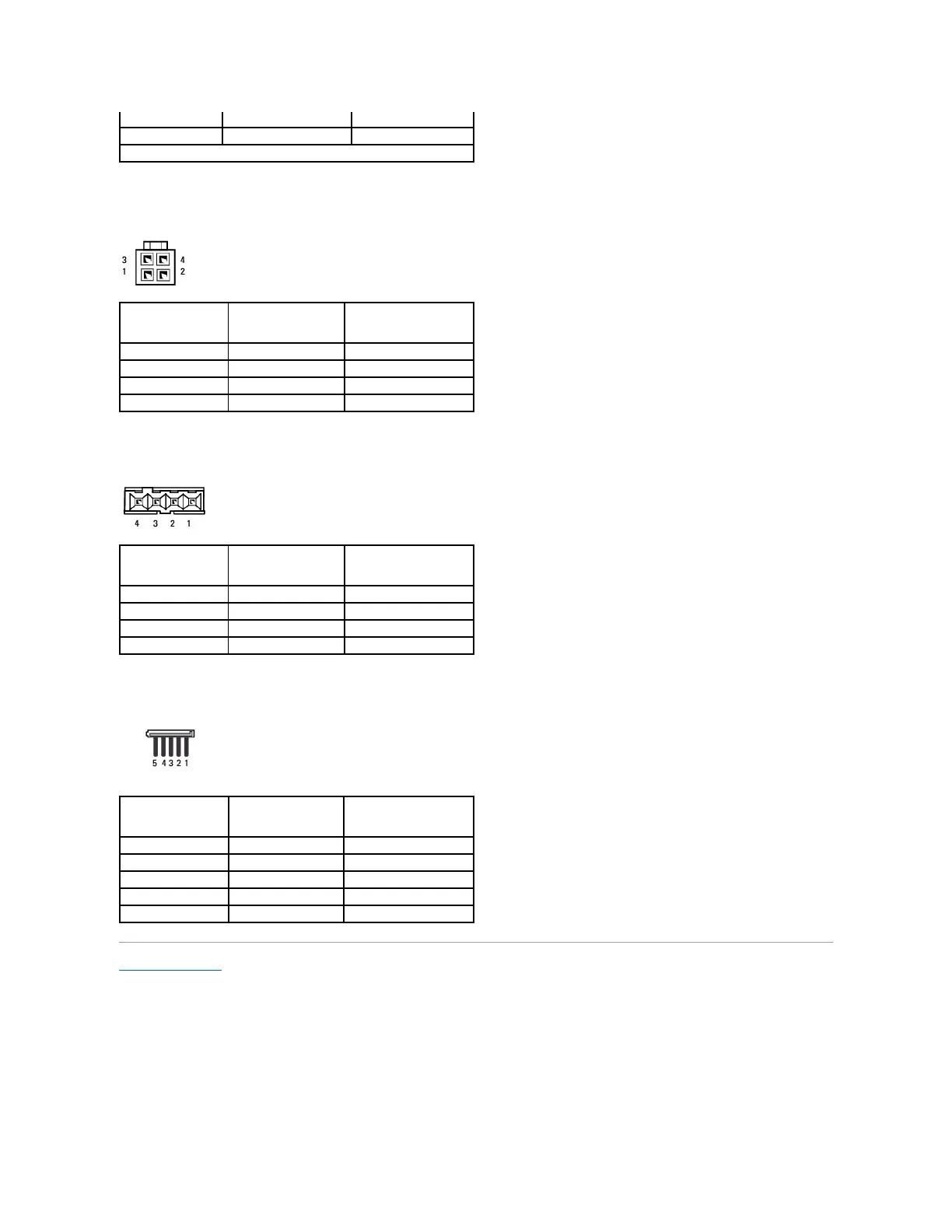

DC Power Connector P2

DC Power Connector P4

DC Power Connector P5 and P6
Back to Contents Page

23
+5 VDC
Red
24
GND
Black
*Use 22-AWG wire instead of 18-AWG wire.

Pin Number

Signal Name

18-AWG Wire
1
GND
Black
2
GND
Black
3
+12 VDC
Yellow
4
+12 VDC
Yellow

Pin Number

Signal Name

22-AWG Wire
1
+5 VDC
Red
2
GND
Black
3
GND
Black
4
+12 VDC
Yellow

Pin Number

Signal name

18-AWG Wire
1
+3.3 VDC
Orange
2
GND
Black
3
+5 VDC
Red
4
GND
Black
5
+12 VDC
Yellow
