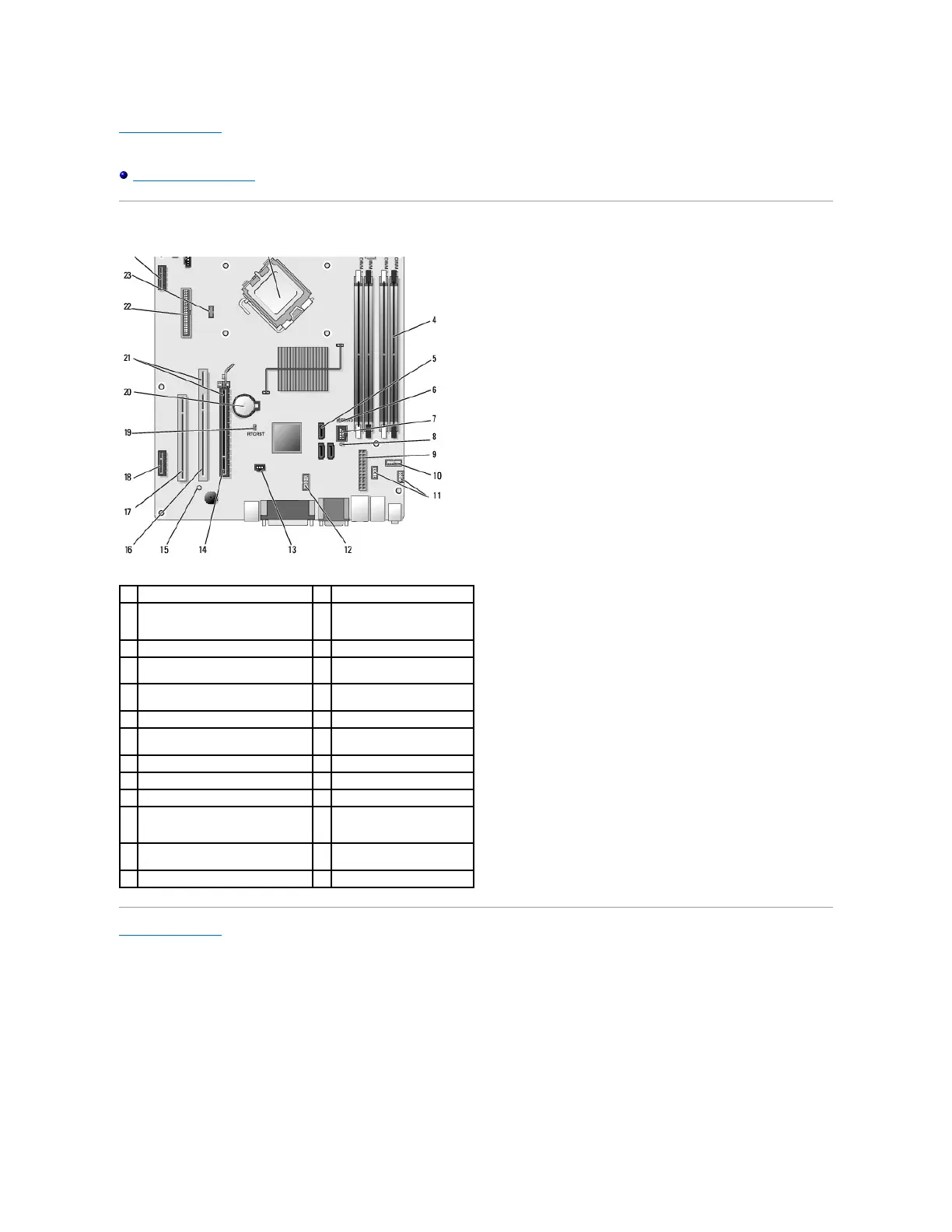

System Board Components
System Board Components
Back to Contents Page

1
fan connector (FAN_CPU)
2
processor connector (CPU)
3
processor power connector
(12VPOWER)
4
memory module connectors
(DIMM_1, DIMM_2, DIMM_3,
DIMM_4)
5
SATA drive connectors (3)
6
password jumper (PSWD)
7
internal USB connector (FLEX_USB)
8
Service Mode jumper
(SERVICE_MODE)
9
power connector (POWER)
10
system status LEDs panel
connector (FRONTPANEL)
11
I/O assembly connectors (2)
12
internal serial connector
13
intrusion switch connector
(INTRUDER)
14
PCIe x16 connector (SLOT1)
15
auxiliary power LED (AUX_POWER)
16
PCI connector (SLOT2)
17
PCI connector (SLOT3)
18
PCIe x1 connector (SLOT4)
19
BIOS/RTC reset jumper pins
20
RTC battery socket (BATTERY)
21
connectors comprise riser interface
(uses PCIe connector/SLOT1 and PCI
connector/SLOT2)
22
floppy connector (DSKT2)
23
connector for optional internal
speaker (INT_SPKR1)
24
connector for optional
wireless card
25
front panel thermal sensor connector


