1. Perform the procedure Before Working on Your Computer.
2. Disconnect the speaker cable from the system board.

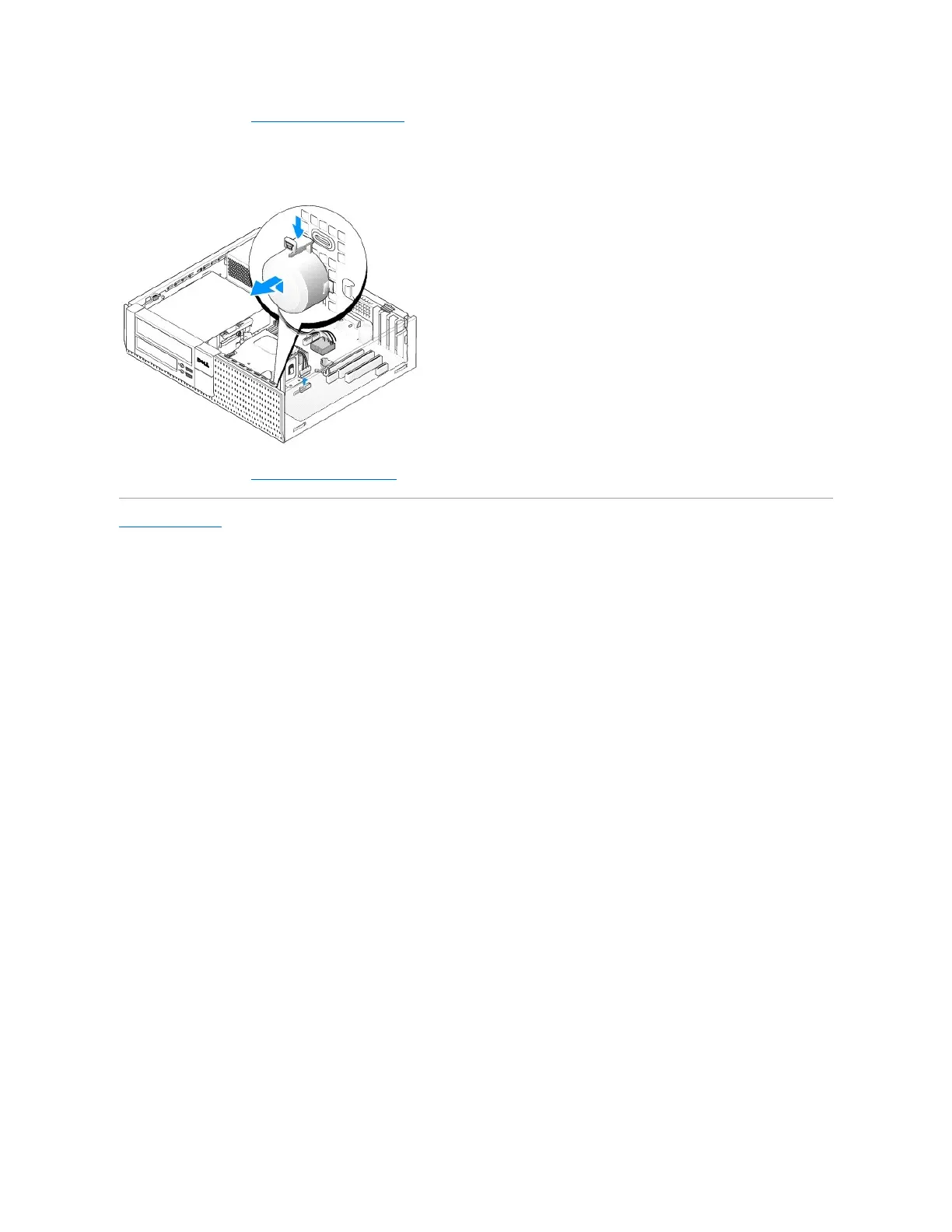

3. To remove the internal speaker, press the locking tab, shift the speaker to move the speaker housing retention tabs out of the grill retention tabs, and
lift the speaker from the chassis.
4. Perform the procedure After Working on Your Computer.
