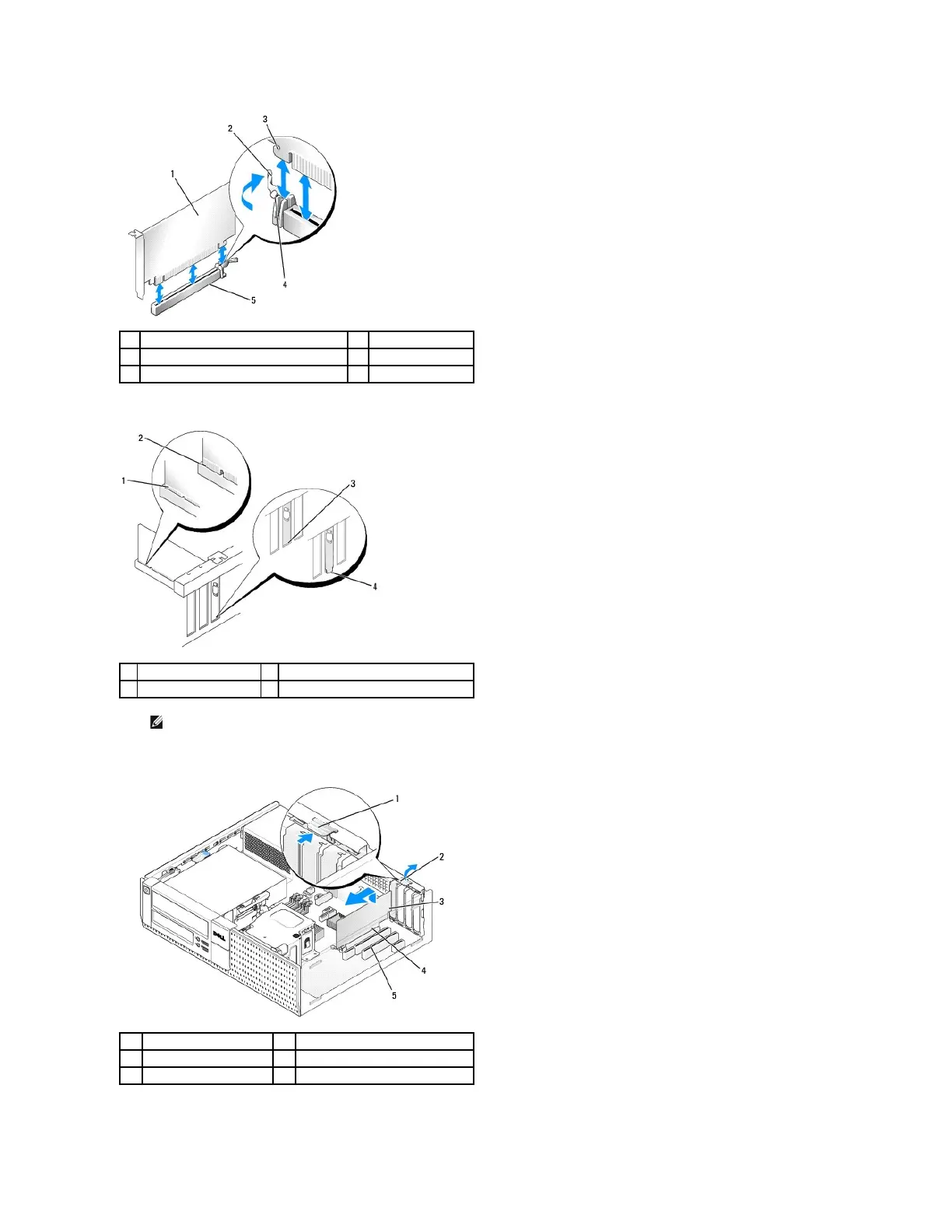

6. Place the card in the connector and press down firmly. Using the following illustration as a guide, ensure that the card is fully seated in the slot.

7. Gently rotate the release tab downward to move the card-retention latch into place to secure the cards.

1
PCIe x16 card
2
release lever
3
securing slot (not all cards)
4
securing tab
5
PCIe x16 card connector


1
card fully seated
2
card not fully seated
3
bracket within slot
4
bracket caught outside of slot
NOTE: If you are installing a PCIe x16 card, ensure that the securing tab on the connector's release lever fits into the slot on the front end of the
card.
1
release tab
2
card-retention latch
3
card
4
card-edge connector
5
card connector


