Dell OptiPlex Small Form Factor Plus 7010 User Manual

Steps

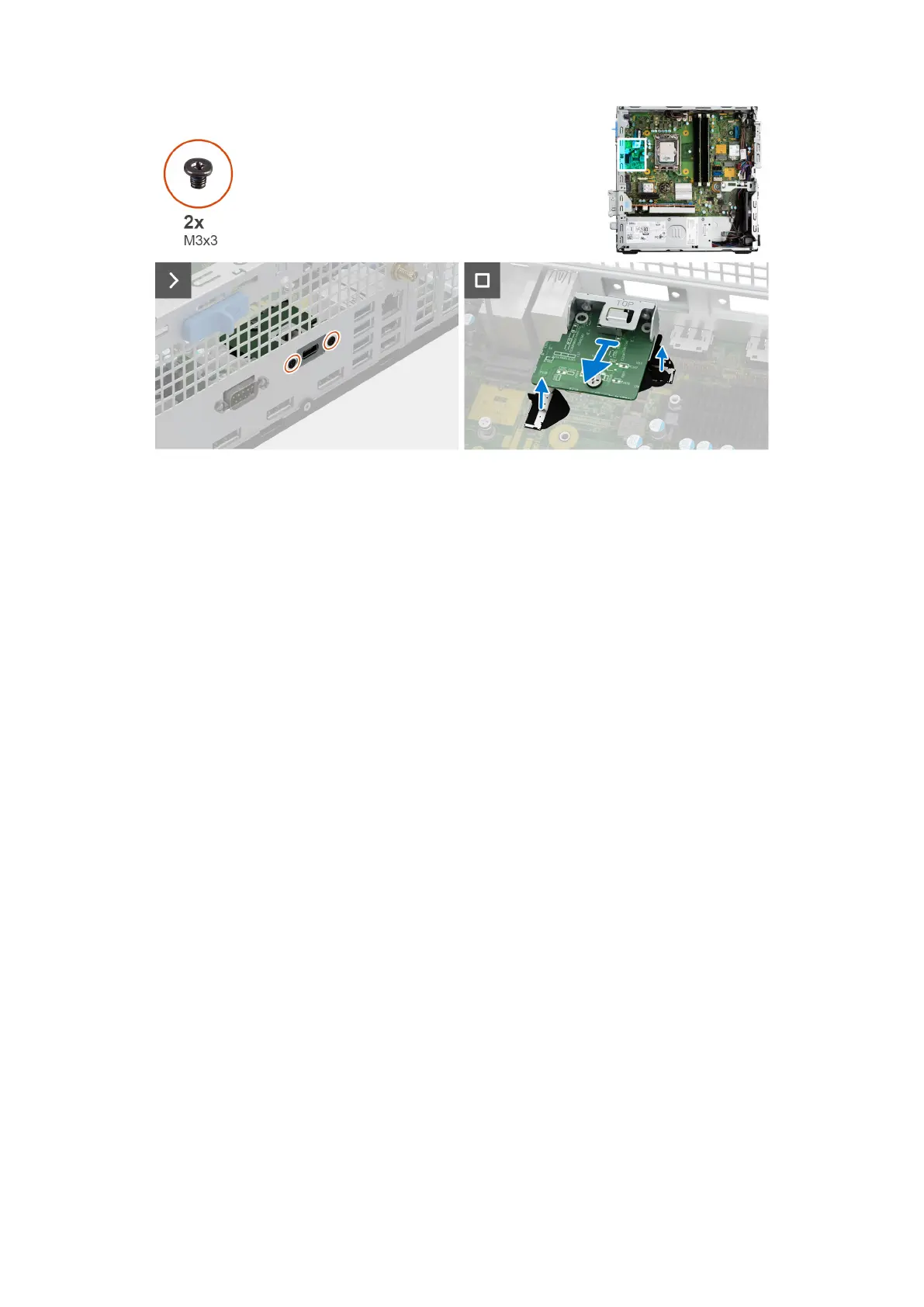

1. Remove the two (M3x3) screws that secure the Type-C module to the chassis.
2. Disconnect the Type-C-module cables from the connectors on the system board.
3. Lift the Type-C module off the system board.
Installing the Type-C module
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the Type-C module and provides a visual representation of the installation
procedure.
100
Removing and installing Field Replaceable Units (FRUs)
