5. Free the system board from the back I/O panel by sliding it towards the right and lift the system board out of the chassis.
Installing the system board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

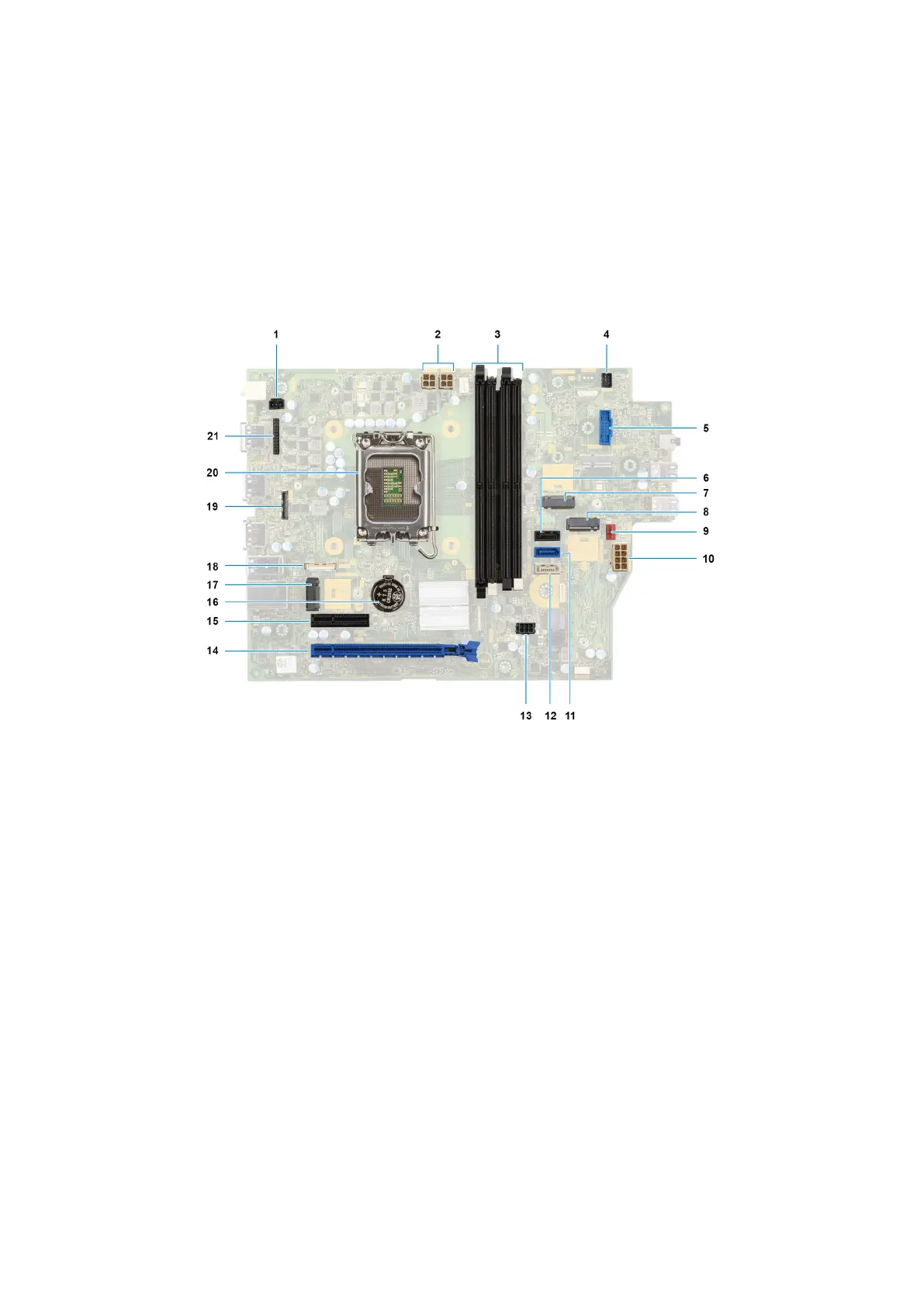

The following image indicates the connectors on your system board.
The following image indicates the location of the system board and provides a visual representation of the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
