Steps
1. Disconnect the system-fan cable from the connector on the system board.
2. Gently pull the top rubber grommets to release the fan from the chassis.
NOTE: The rubber grommets must be re-used during system fan replacement.
3. Slide and push the bottom rubber grommets through the holes on the chassis.
4. Remove the system fan off the chassis.
Installing the system fan
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

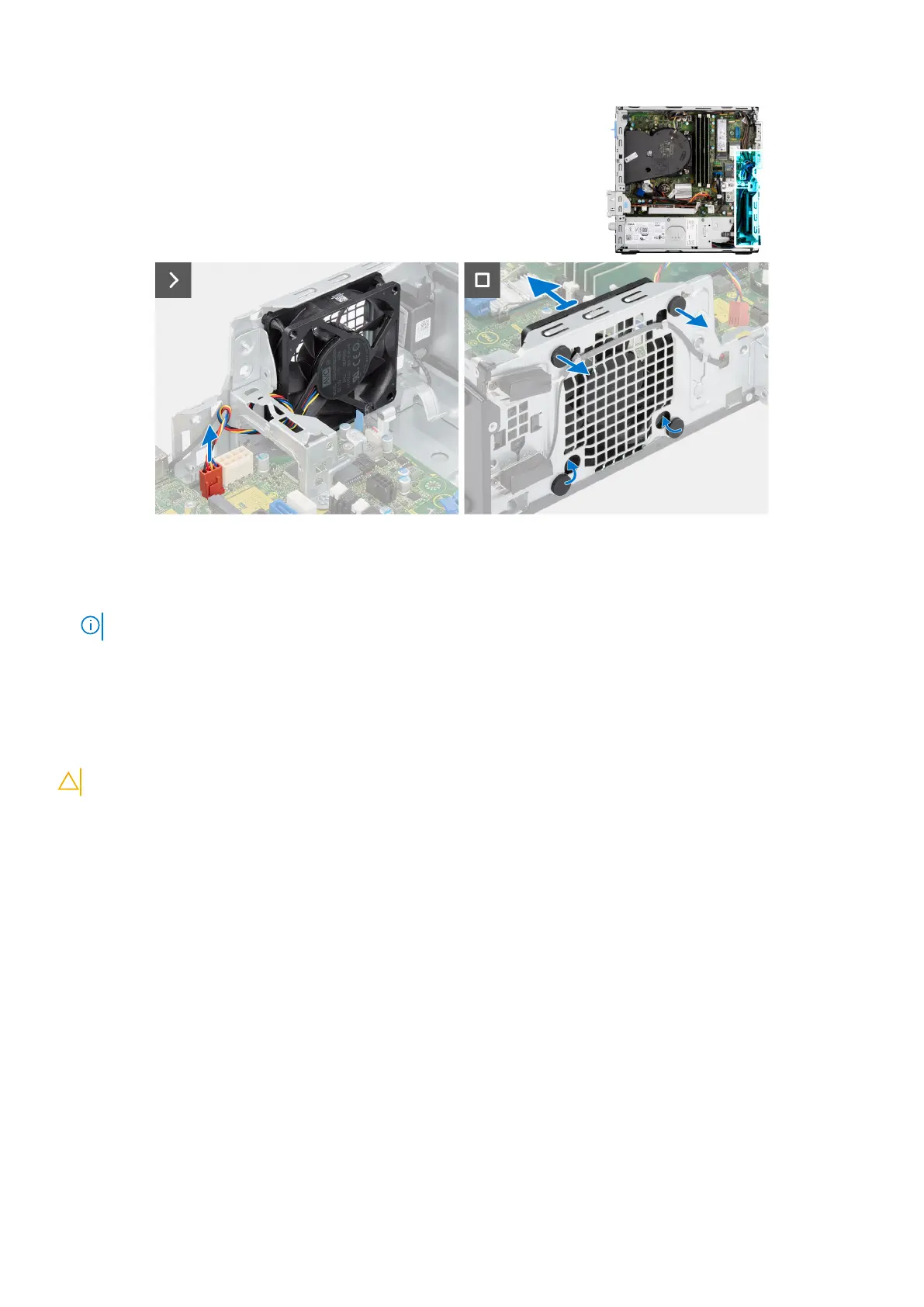

The following image indicates the location of the system fan and provides a visual representation of the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
77
