Steps

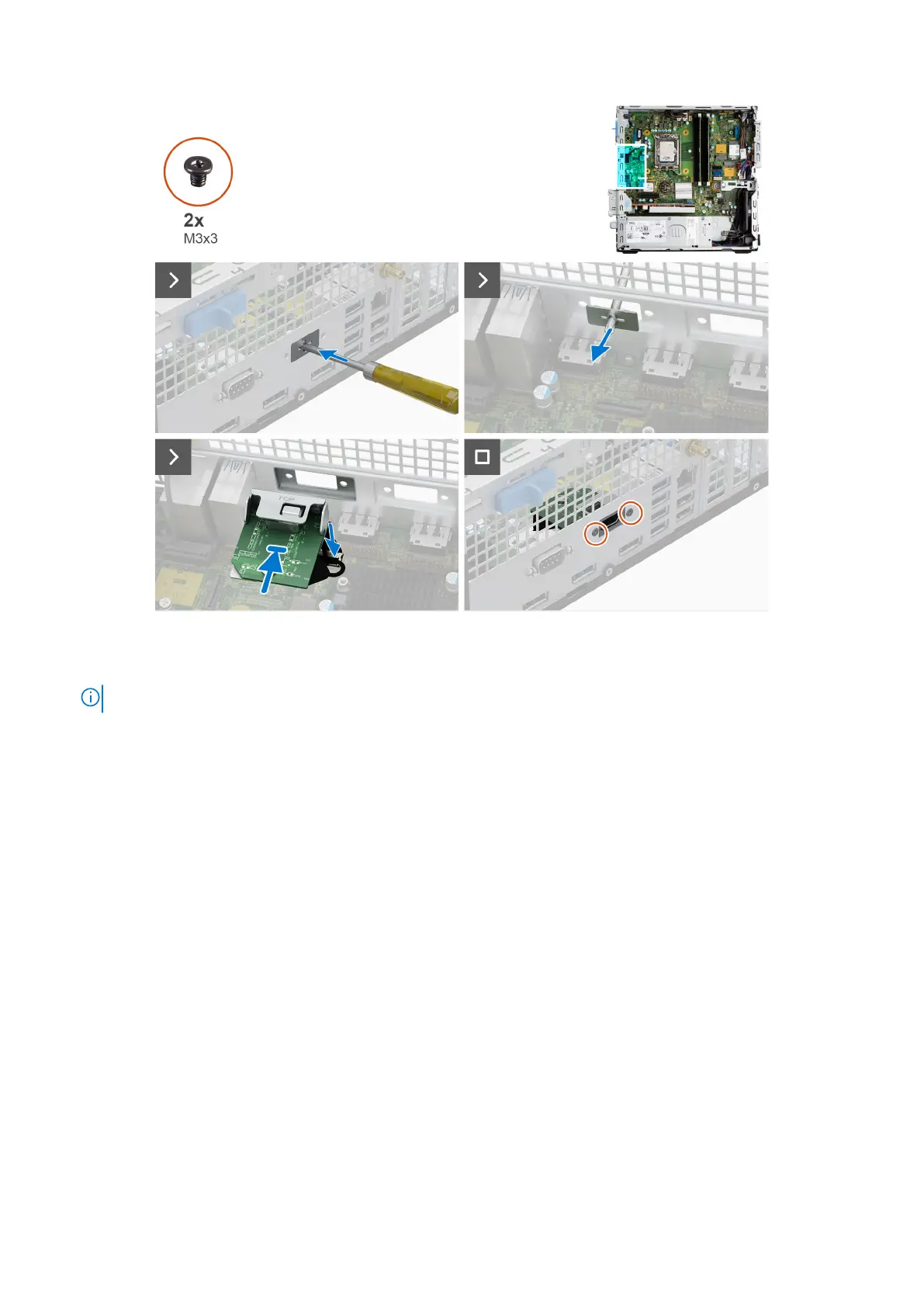

1. Using a screwdriver, remove the HDMI module cover from the chassis.
NOTE: This step is applicable only when the HDMI module is being installed for the first time.
2. Connect the HDMI-module cable to the connector (VIDEO) on the system board.
3. Insert the HDMI module into the slot on the chassis.
4. Replace the two (M3x3) screws that secure the HDMI module to the chassis.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
Type-C module
Removing the Type-C module
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
About this task
The following image indicates the location of the Type-C module and provides a visual representation of the removal procedure.
Removing and installing Field Replaceable Units (FRUs)
99
