Dell OptiPlex XE3 Tower - Installing 3.5-Inch Hard Drive Assembly

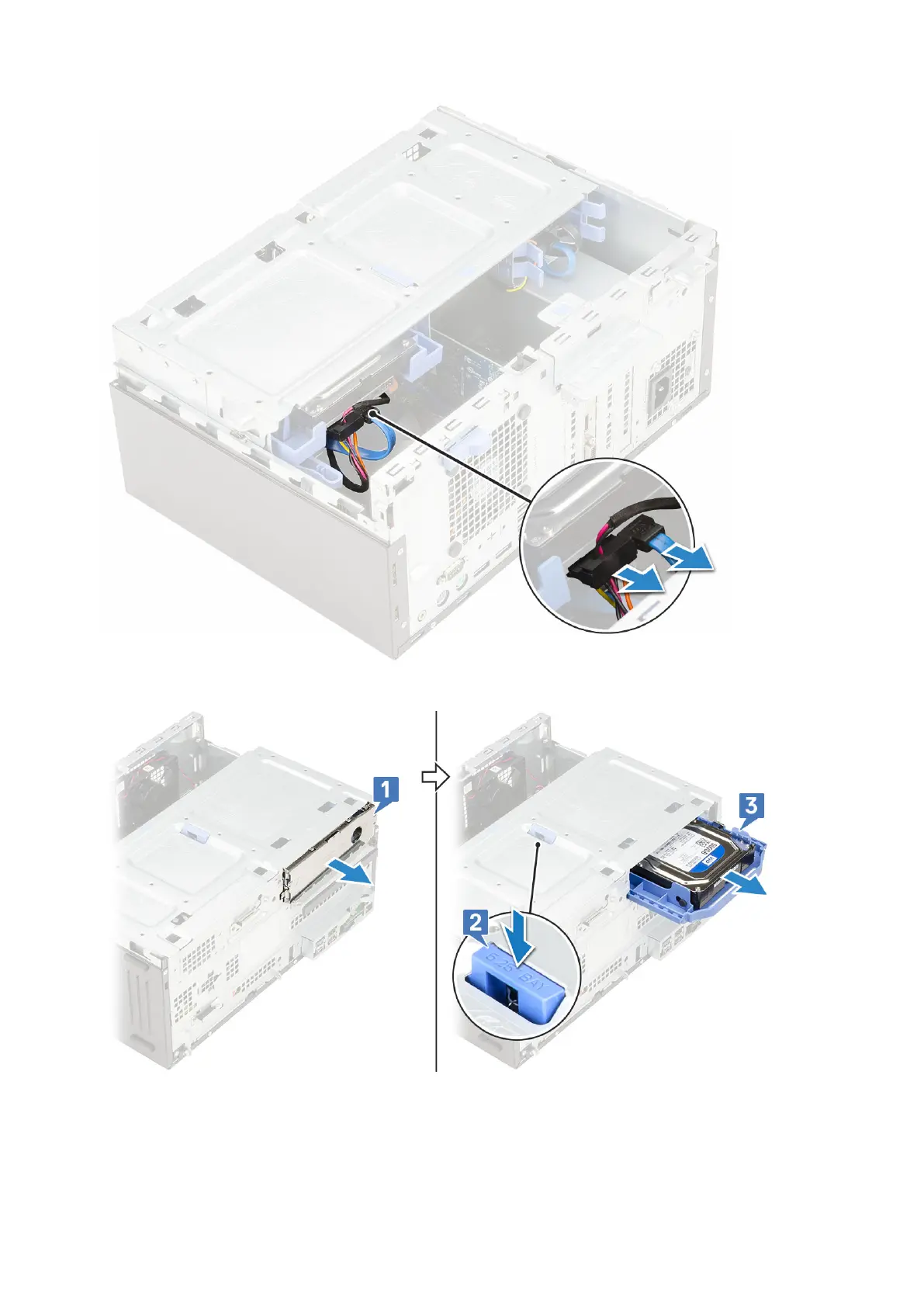

b. Pull the metal bracket that shields the hard drive assembly [1].
c. Press the blue tab [2] and pull the hard drive assembly out of the computer [ 3].
Installing 3.5–inch hard drive assembly
1. Insert the hard drive assembly into the slot on the computer until it clicks into place [1].
Disassembly and reassembly
17
