Dell OptiPlex XE3 Tower - Installing Heatsink Fan

Installing heatsink fan

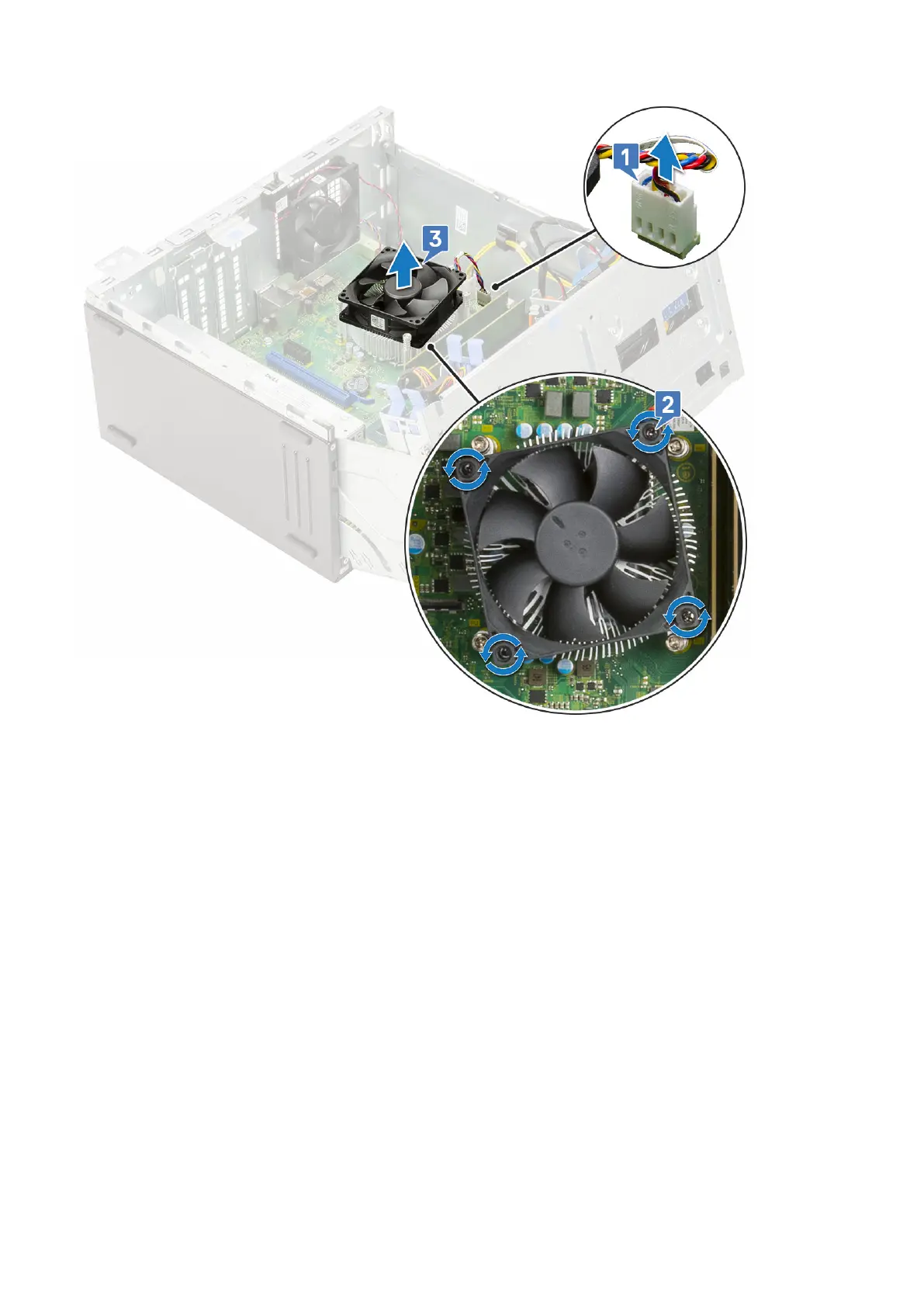

1. Place the fan on the heatsink assembly [1].
2. Tighten the screws (4) to secure the fan to the heatsink assembly [2].
3. Connect the heatsink fan assembly cable to the connector on the system board [3].
Disassembly and reassembly
47
