Dell OptiPlex XE3 Tower - Installing Intrusion Switch

Installing intrusion switch

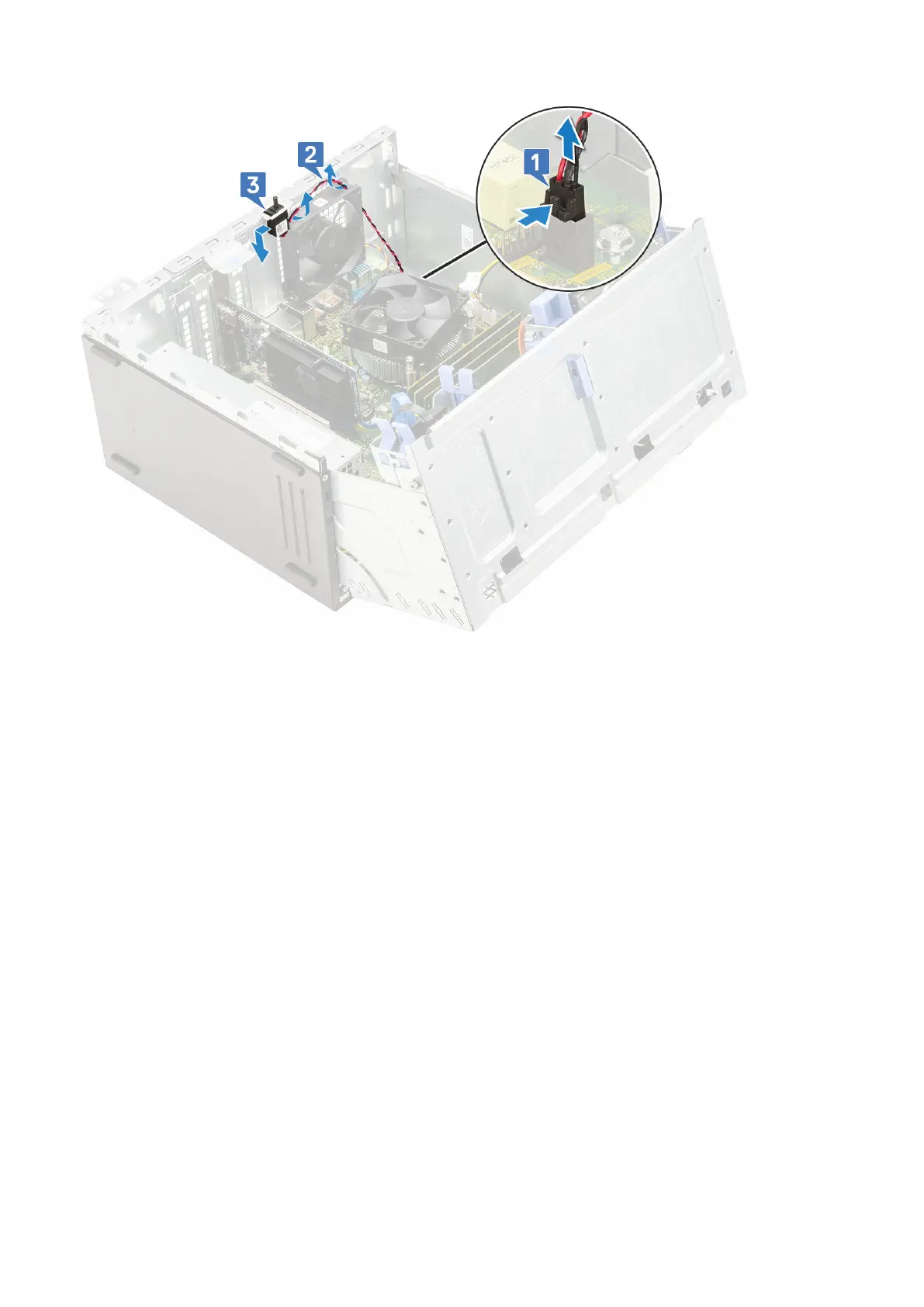

1. Insert the intrusion switch and slide the switch into the slot on the computer chassis [1].
2. Route the intrusion switch cable through the fan grommet [2].
3. Connect the intrusion switch cable to the connector on the system board [3].
