Dell OptiPlex XE4 Tower - Removing the 3.5-Inch Hard Drive Bracket

About this task

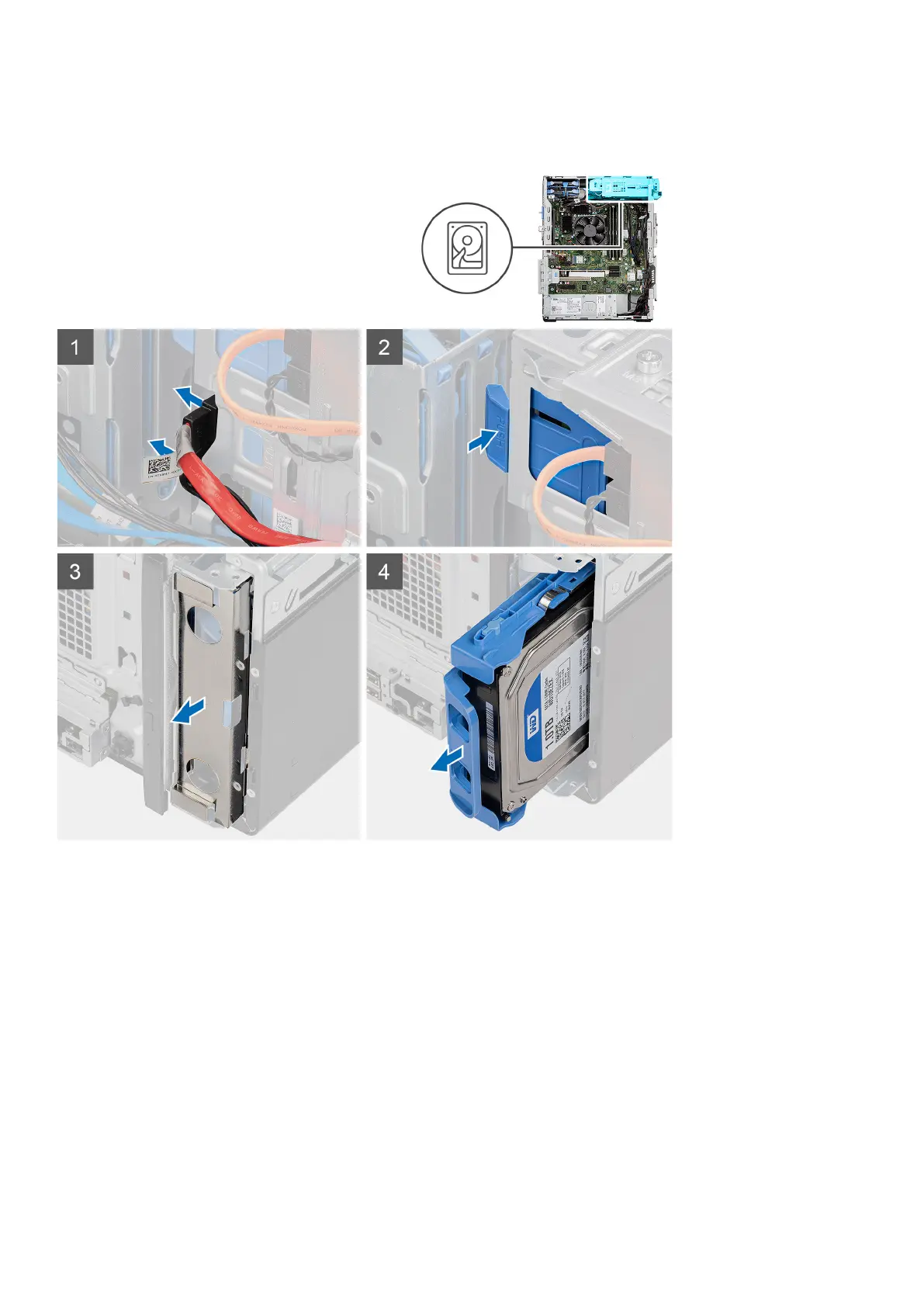

The following images indicate the location of the 3.5-inch hard drive assembly and provide a visual representation of the removal
procedure.
Steps
1. Disconnect the data and power cables from the 3.5-inch hard drive module.
2. Push the securing tab to release the hard drive assembly from the chassis.
3. Remove the EMI shield from the front side of the chassis.
4. Slide the hard drive assembly away from the chassis.
Removing the 3.5-inch hard drive bracket
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the 3.5-inch hard drive assembly.
24
Removing and installing components
