Steps
1. Insert the SD card reader into its slot on the system chassis.
2. Close the SD card reader bracket.
3. Replace the screw that secures the SD card reader bracket to the system chassis.
Next steps
1. Install the front bezel.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Optional modules
Removing optional DisplayPort module
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
About this task

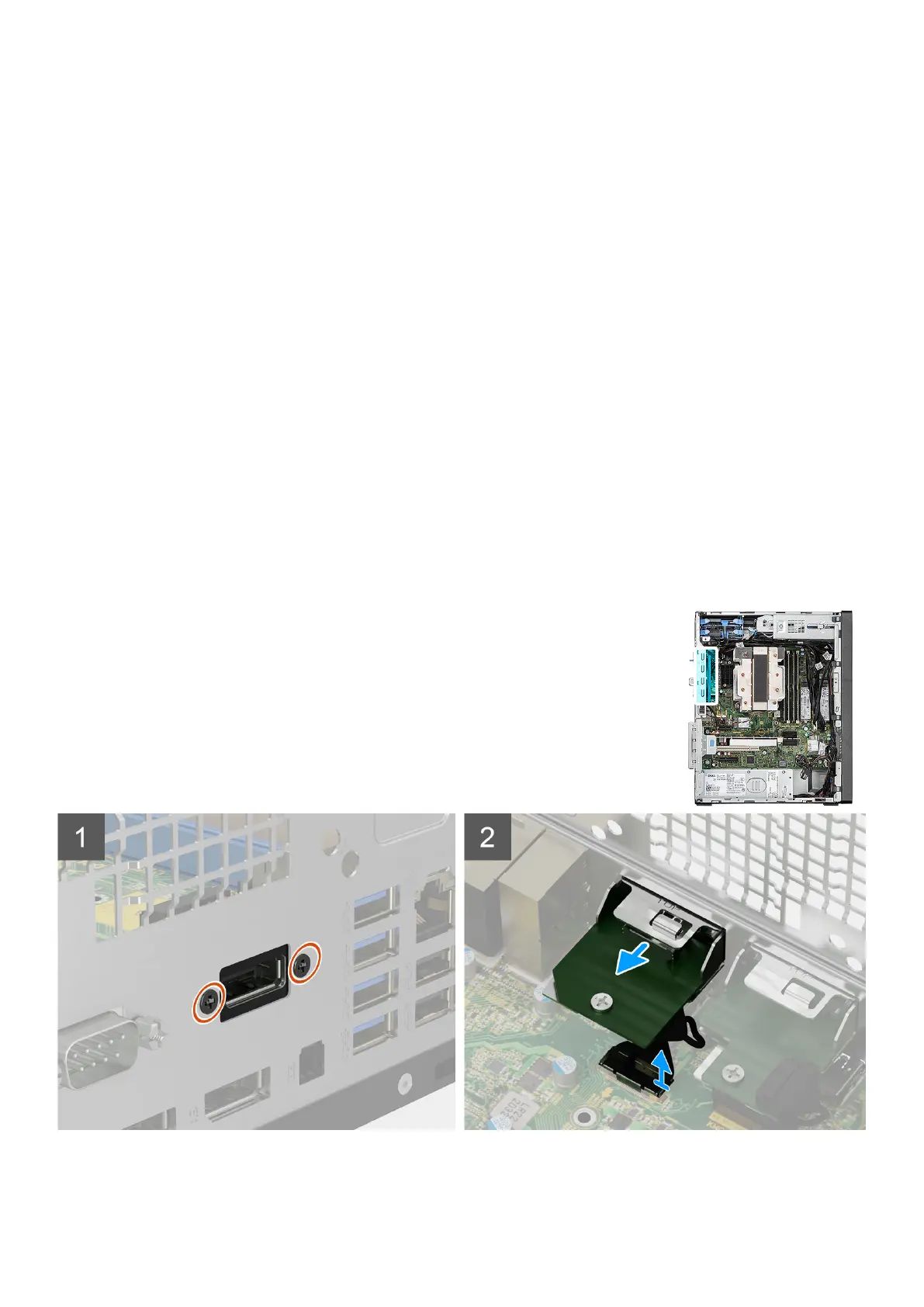

The following images indicate the location of the optional DisplayPort module and provide a visual representation of the removal
procedure.
78
Removing and installing components
