Dell OptiPlex XE4 Tower User Manual

Steps
1. Remove the four screws that secure the processor fan to the heat-sink assembly.
2. Lift the processor fan from the heat-sink.
Installing the processor fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

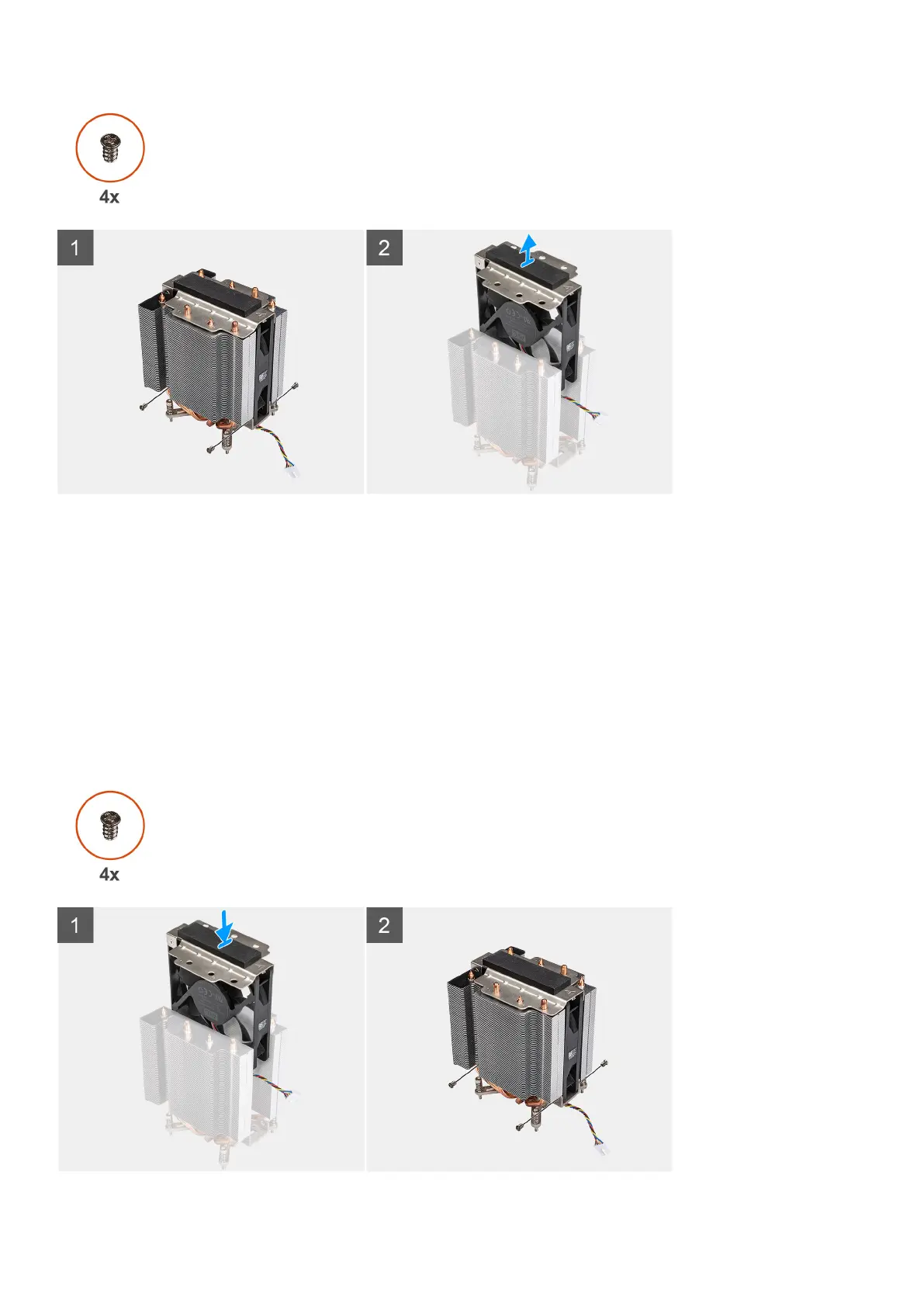

The following images indicate the location of the processor fan and provide a visual representation of the removal procedure.
Removing and installing components
61
