Steps
1. Remove the screw that secures the SD card reader bracket to the system chassis.
2. Lift to open the SD card reader bracket.
3. Pull to slide out the SD card reader from the system chassis.
Installing the SD card reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

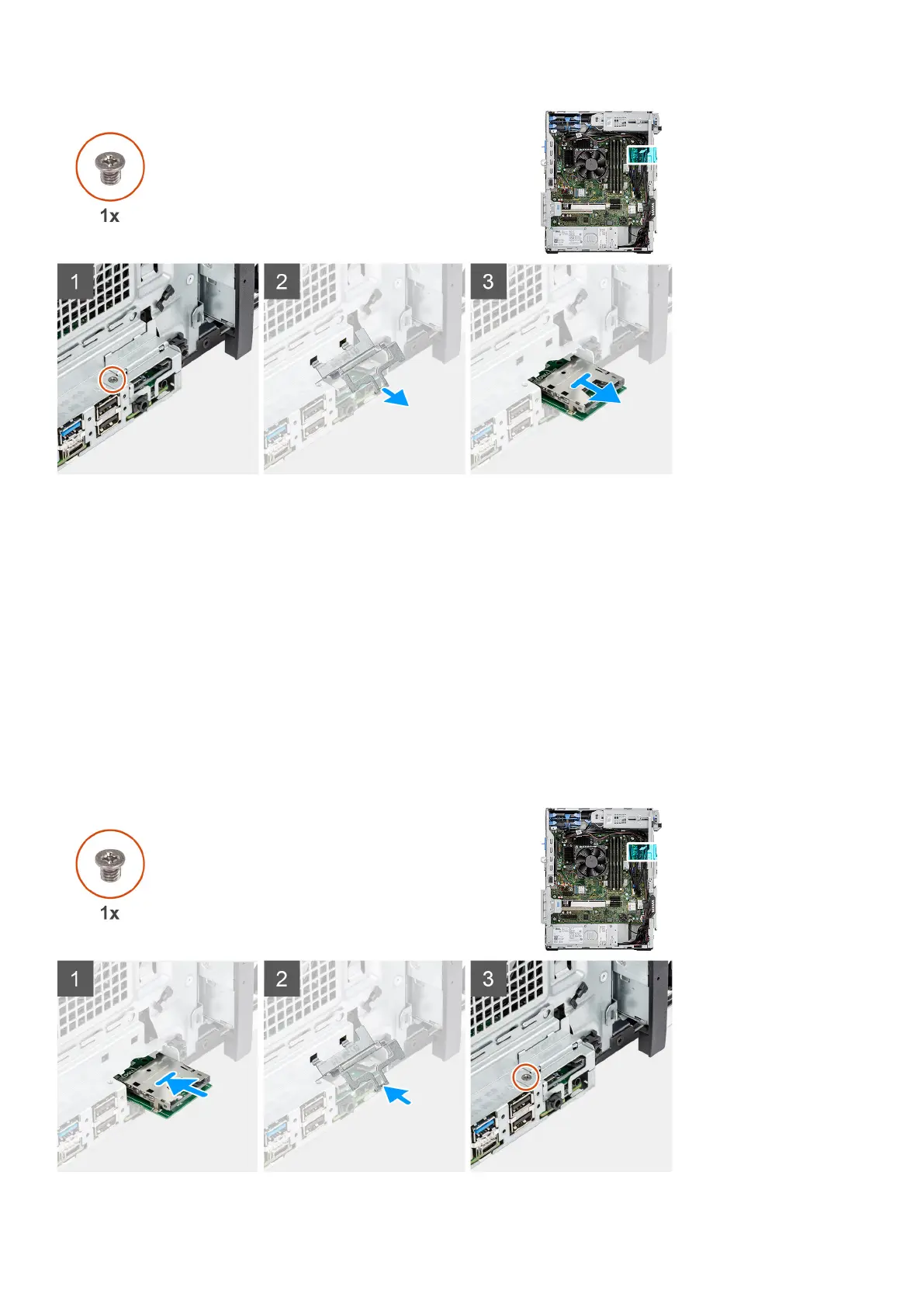

The following image indicates the location of the SD card reader and provides a visual representation of the installation
procedure.
Removing and installing components
77
