Steps

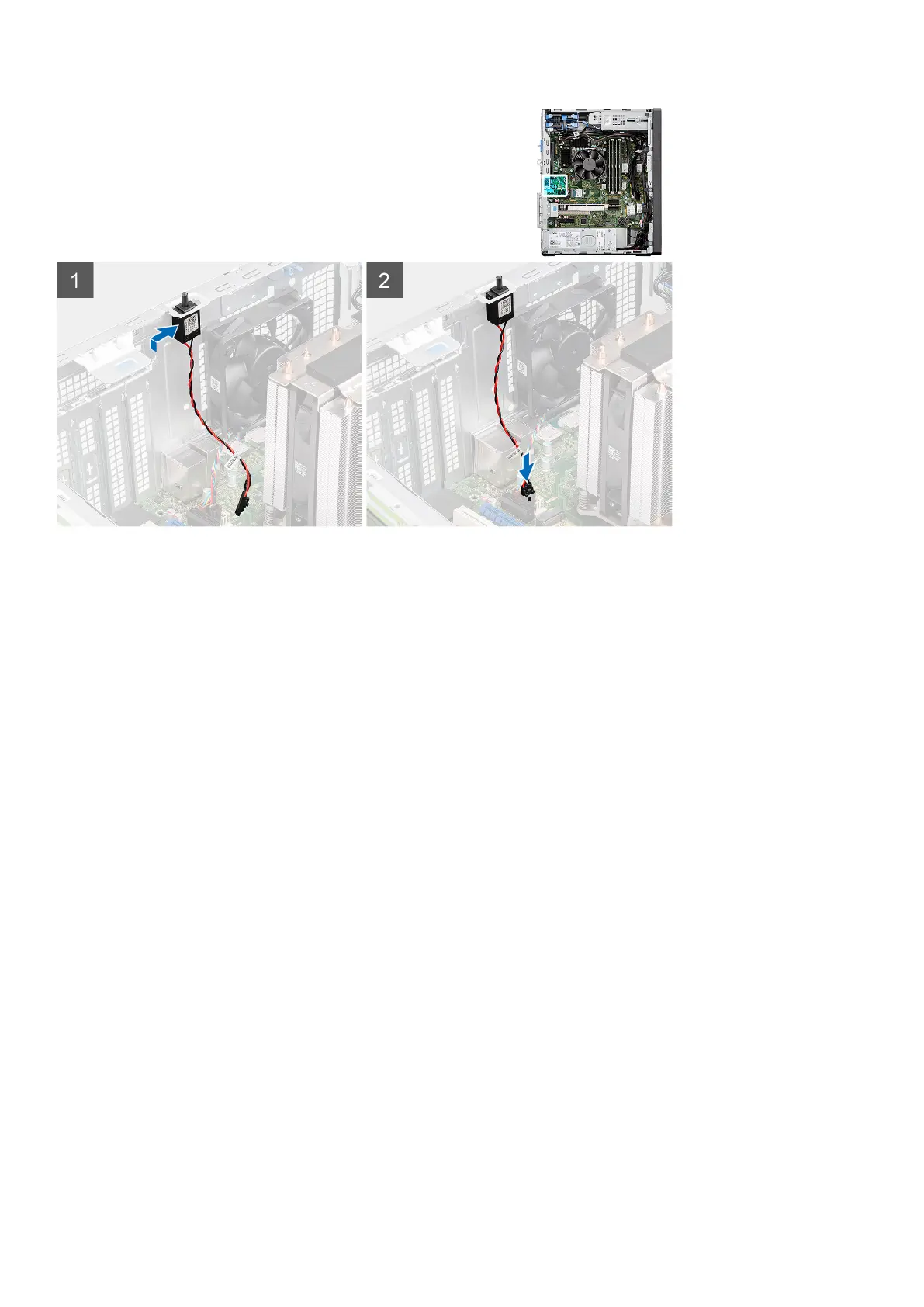

1. Insert the intrusion switch into its slot and slide the switch to secure it into the slot.
2. Connect the intruder cable to the connector on the system board.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
SD card reader (optional)
Removing the SD card reader
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
About this task
The following image indicates the location of the SD card reader and provides a visual representation of the removal procedure.
76
Removing and installing components
