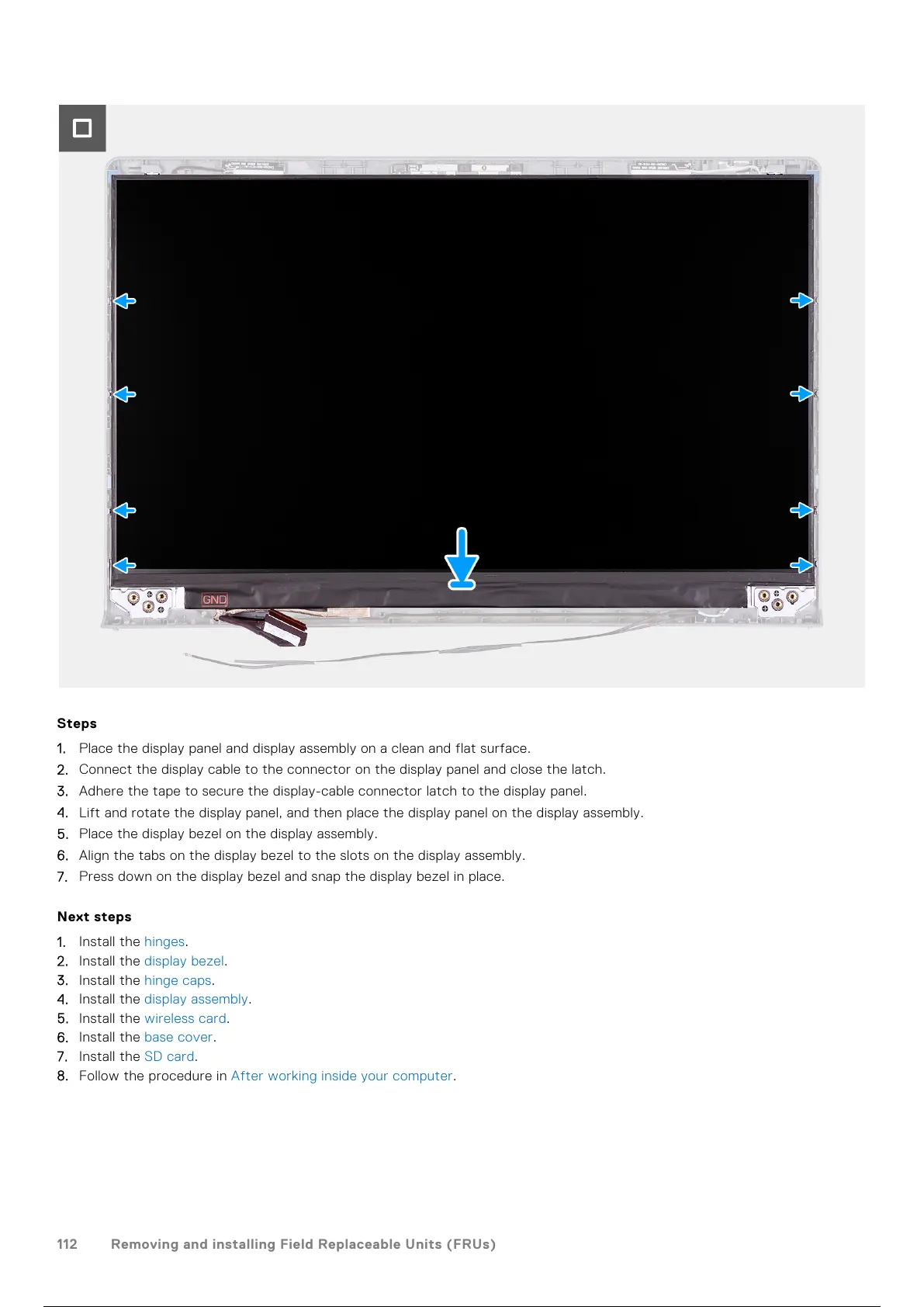

Steps
1. Place the display panel and display assembly on a clean and flat surface.
2. Connect the display cable to the connector on the display panel and close the latch.
3. Adhere the tape to secure the display-cable connector latch to the display panel.
4. Lift and rotate the display panel, and then place the display panel on the display assembly.
5. Place the display bezel on the display assembly.
6. Align the tabs on the display bezel to the slots on the display assembly.
7. Press down on the display bezel and snap the display bezel in place.
Next steps
1. Install the hinges.
2. Install the display bezel.
3. Install the hinge caps.
4. Install the display assembly.
5. Install the wireless card.
6. Install the base cover.
7. Install the SD card.
8. Follow the procedure in After working inside your computer.
112
Removing and installing Field Replaceable Units (FRUs)
