NOTE: For systems shipped with a plastic chassis, slide the I/O daughter board cable underneath the wireless card
antenna cables and lift off the palm-rest and keyboard assembly.
Installing the Input/Output daughter board FFC
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

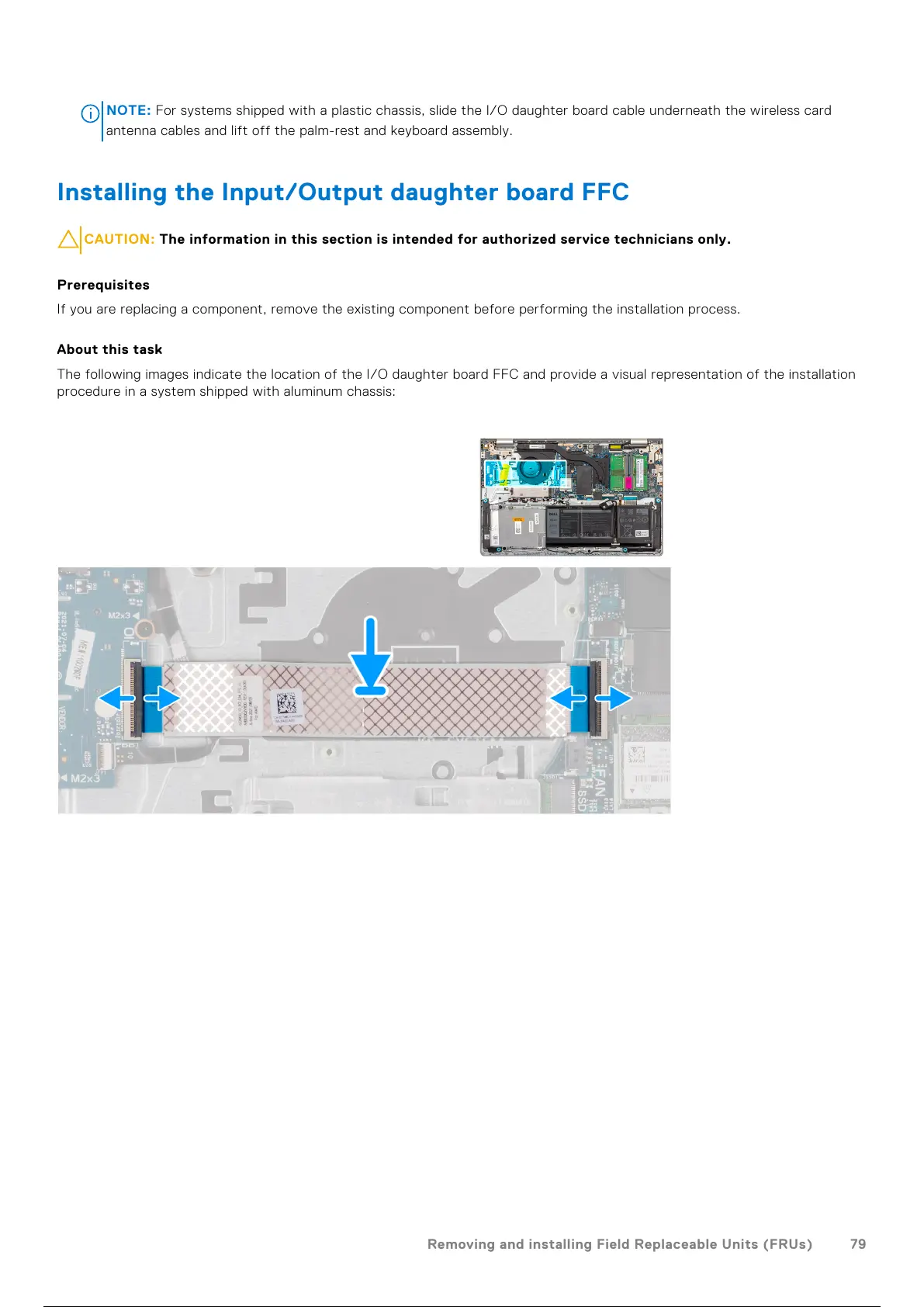

The following images indicate the location of the I/O daughter board FFC and provide a visual representation of the installation
procedure in a system shipped with aluminum chassis:
Removing and installing Field Replaceable Units (FRUs) 79
