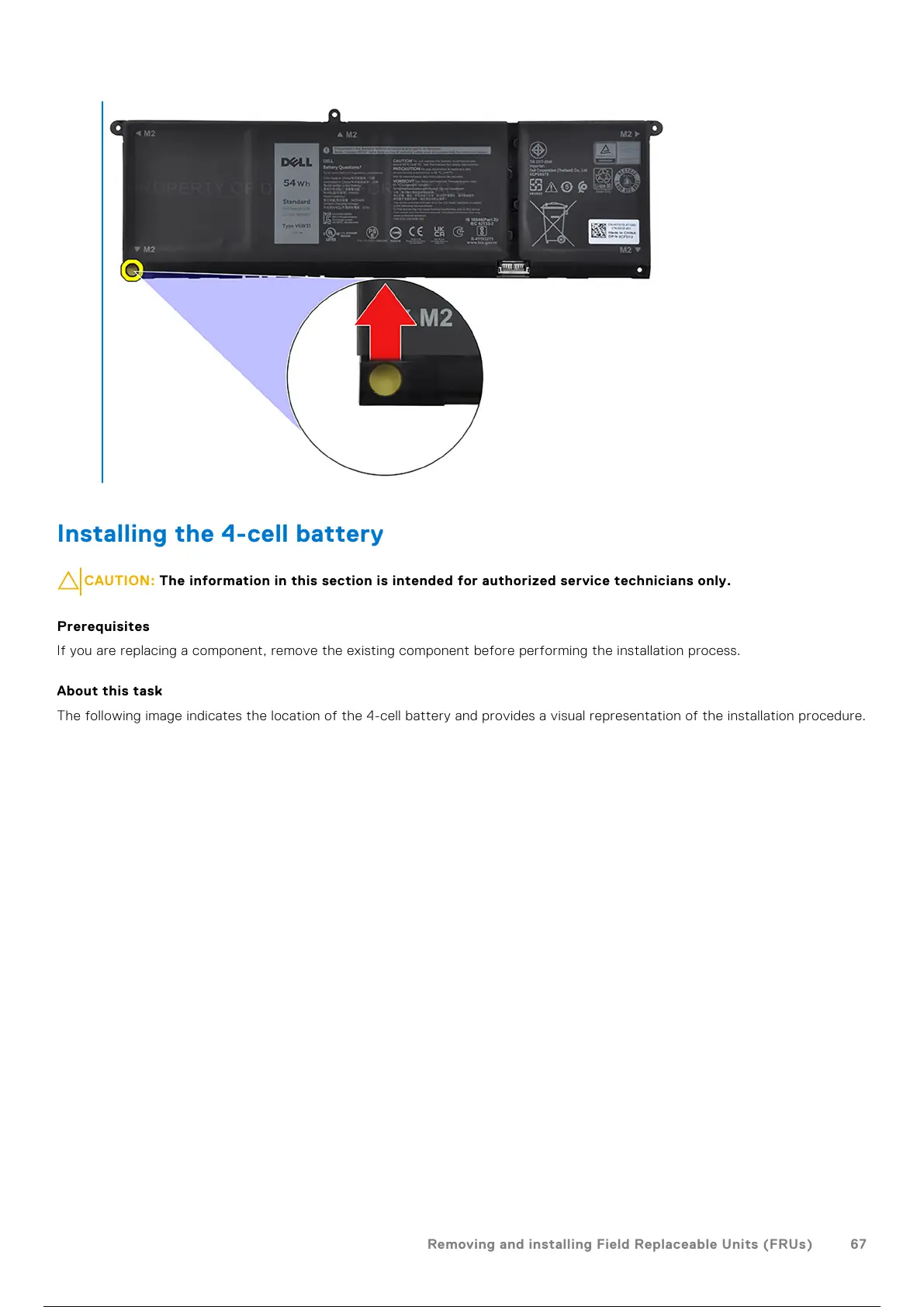

Installing the 4-cell battery
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image indicates the location of the 4-cell battery and provides a visual representation of the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
67
