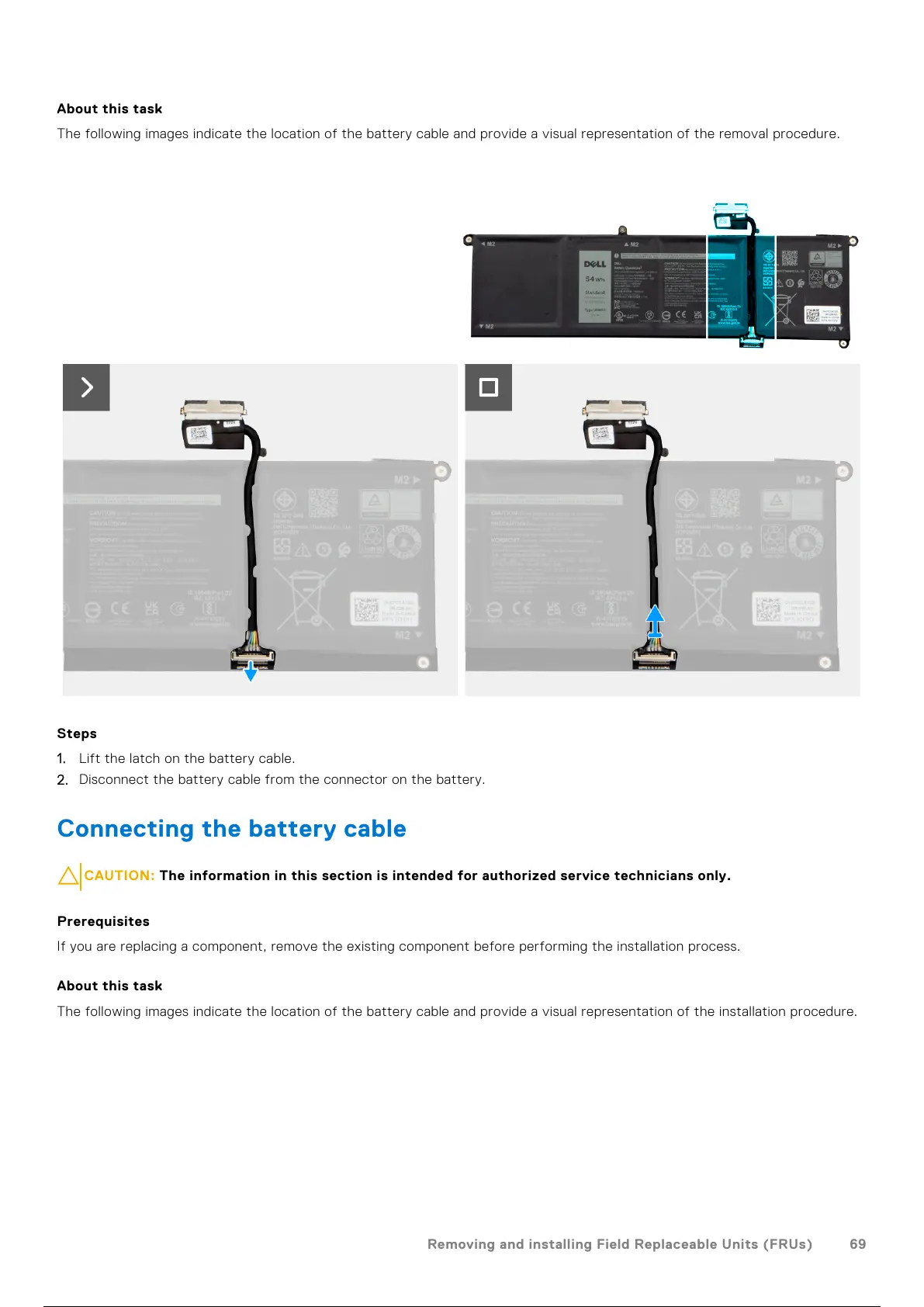

About this task
The following images indicate the location of the battery cable and provide a visual representation of the removal procedure.
Steps
1. Lift the latch on the battery cable.
2. Disconnect the battery cable from the connector on the battery.
Connecting the battery cable
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the battery cable and provide a visual representation of the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
69
