7. Remove the wireless card.
8. Remove the fan.
9. Remove the UMA heat sink or discrete heat sink (whichever applicable).
10. Remove the display assembly.
About this task

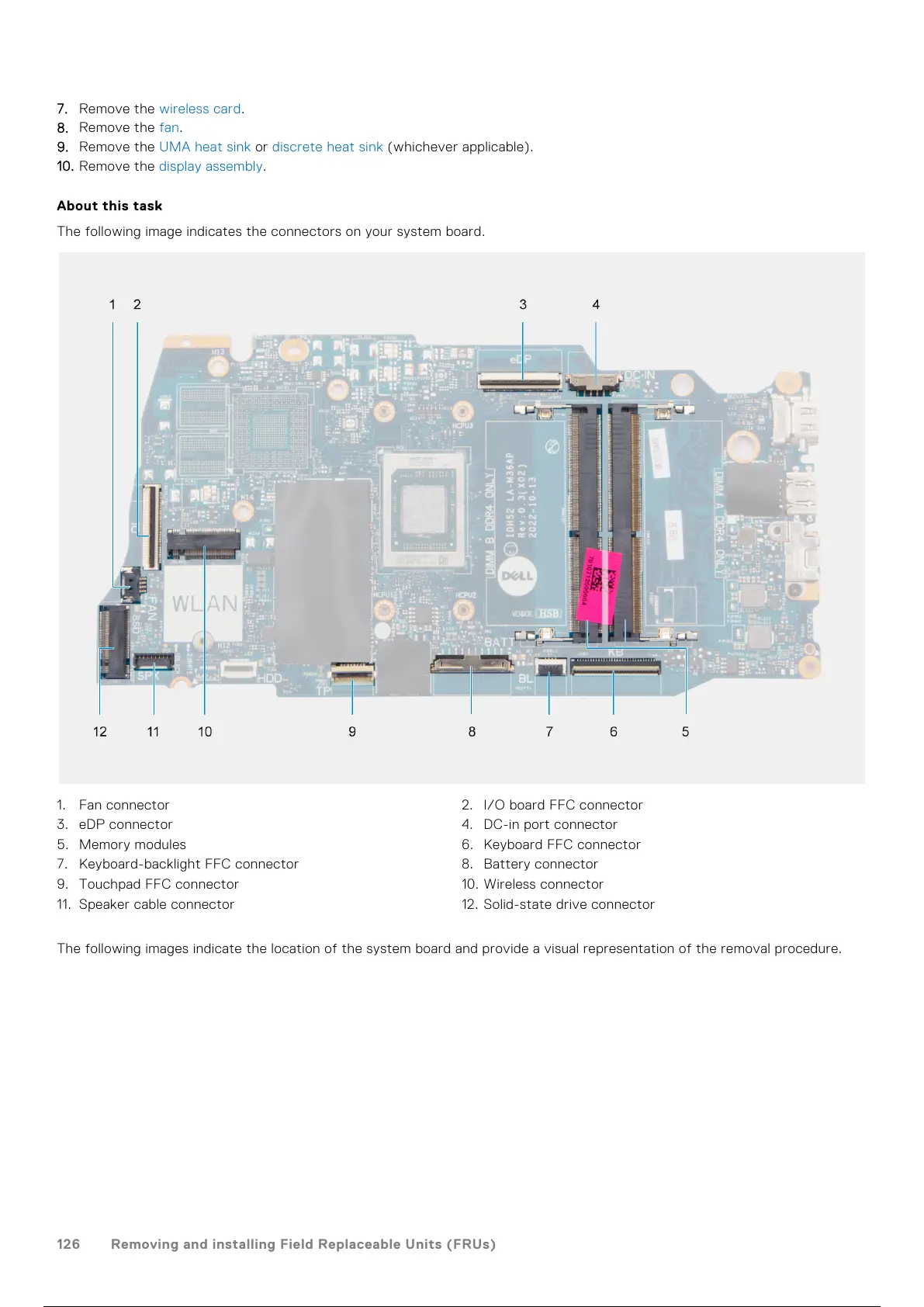

The following image indicates the connectors on your system board.
1. Fan connector 2. I/O board FFC connector
3. eDP connector 4. DC-in port connector
5. Memory modules 6. Keyboard FFC connector
7. Keyboard-backlight FFC connector 8. Battery connector
9. Touchpad FFC connector 10. Wireless connector
11. Speaker cable connector 12. Solid-state drive connector
The following images indicate the location of the system board and provide a visual representation of the removal procedure.
126
Removing and installing Field Replaceable Units (FRUs)
