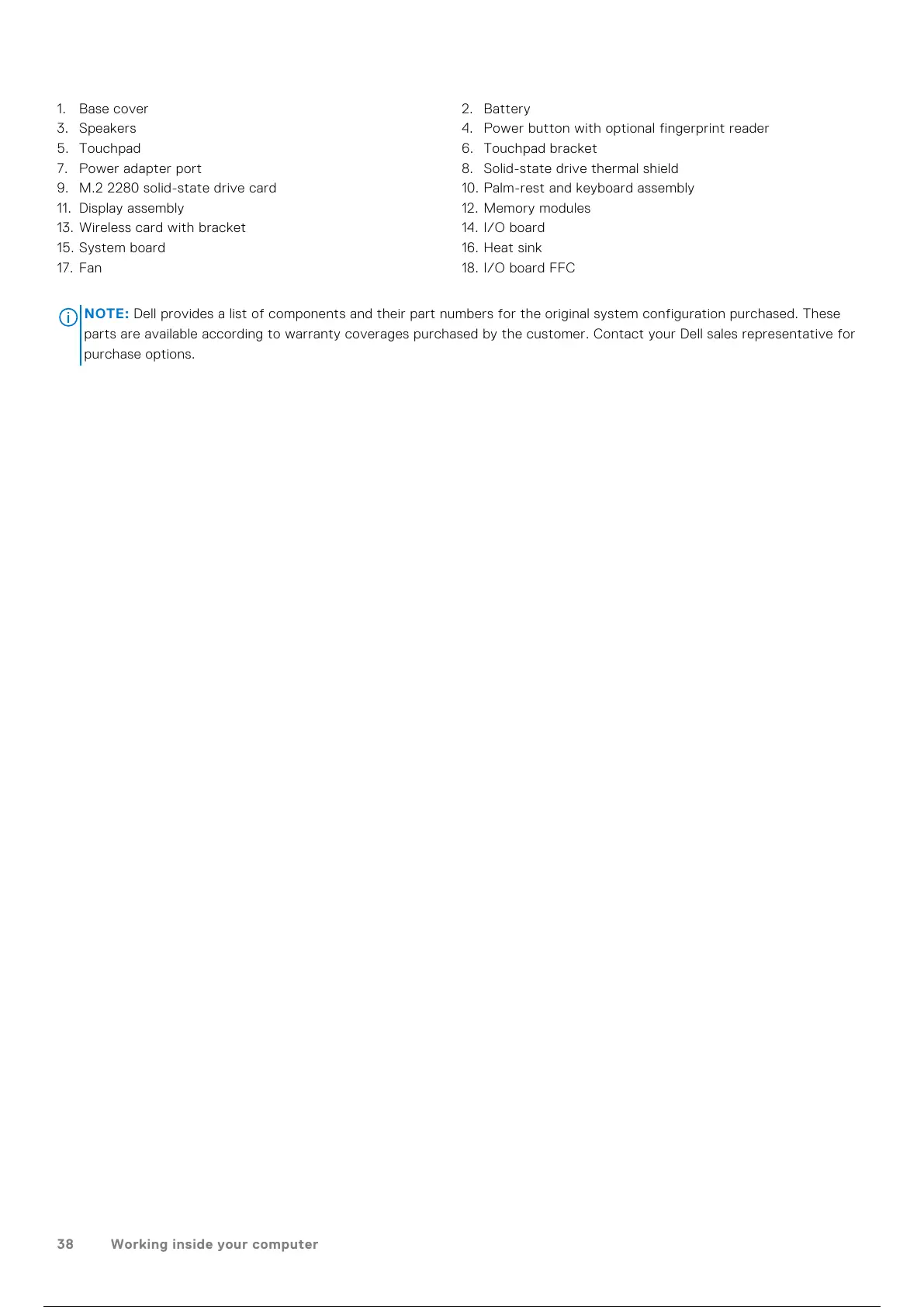

1. Base cover 2. Battery
3. Speakers 4. Power button with optional fingerprint reader
5. Touchpad 6. Touchpad bracket
7. Power adapter port 8. Solid-state drive thermal shield
9. M.2 2280 solid-state drive card 10. Palm-rest and keyboard assembly
11. Display assembly 12. Memory modules
13. Wireless card with bracket 14. I/O board
15. System board 16. Heat sink
17. Fan 18. I/O board FFC
NOTE: Dell provides a list of components and their part numbers for the original system configuration purchased. These
parts are available according to warranty coverages purchased by the customer. Contact your Dell sales representative for
purchase options.
