Steps

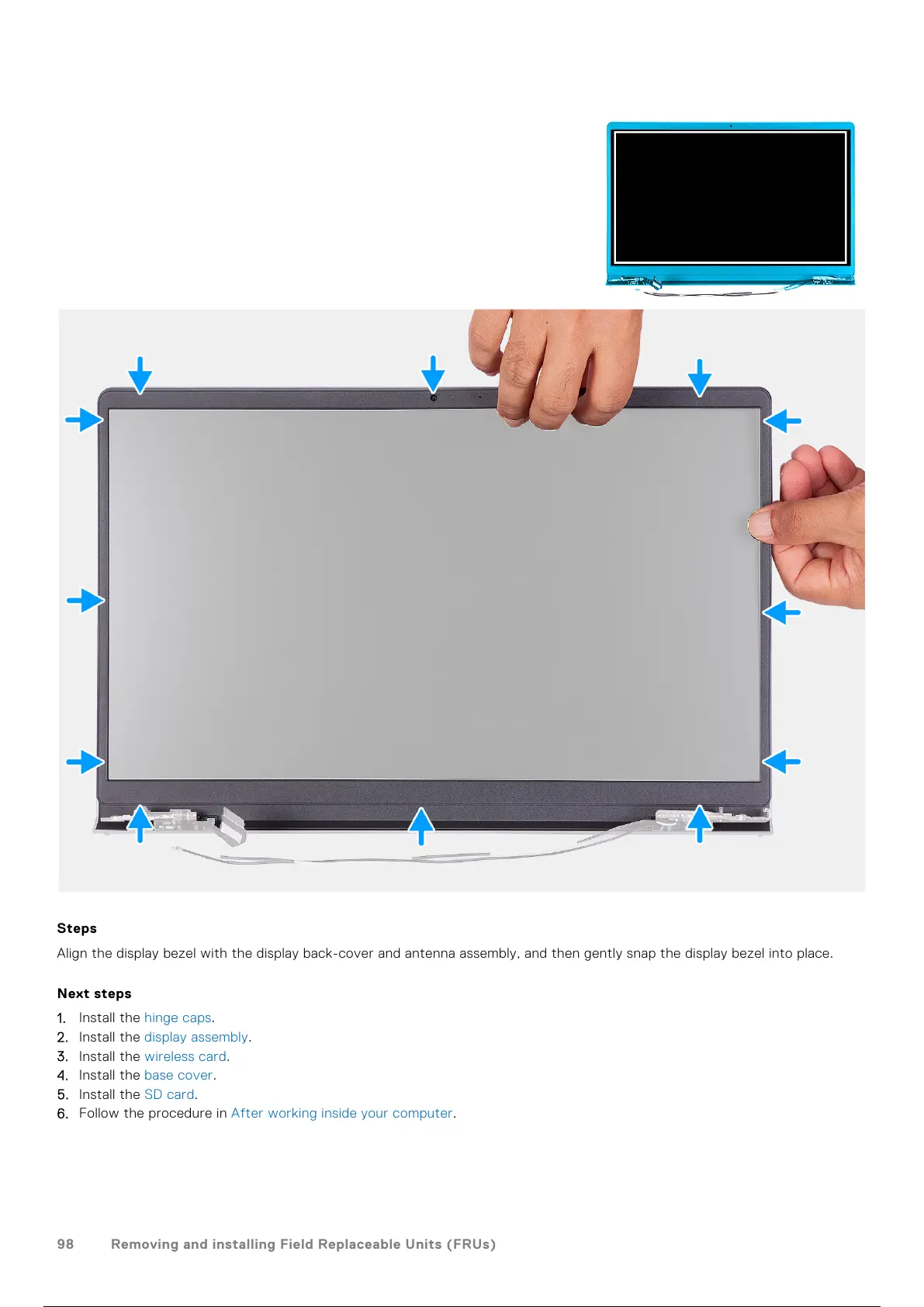

Align the display bezel with the display back-cover and antenna assembly, and then gently snap the display bezel into place.
Next steps
1. Install the hinge caps.
2. Install the display assembly.
3. Install the wireless card.
4. Install the base cover.
5. Install the SD card.
6. Follow the procedure in After working inside your computer.
98
Removing and installing Field Replaceable Units (FRUs)
99 / 156 98 / 154 99 / 156
