Steps
1. Remove the screw (M2x2.5) that secures the solid-state drive bracket to the system board.
2. Slide and remove the solid-state drive bracket off the solid-state drive on the system board.
3. Slide and remove the solid-state drive off the solid-state drive slot on the system board.
Installing the M.2 2230 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

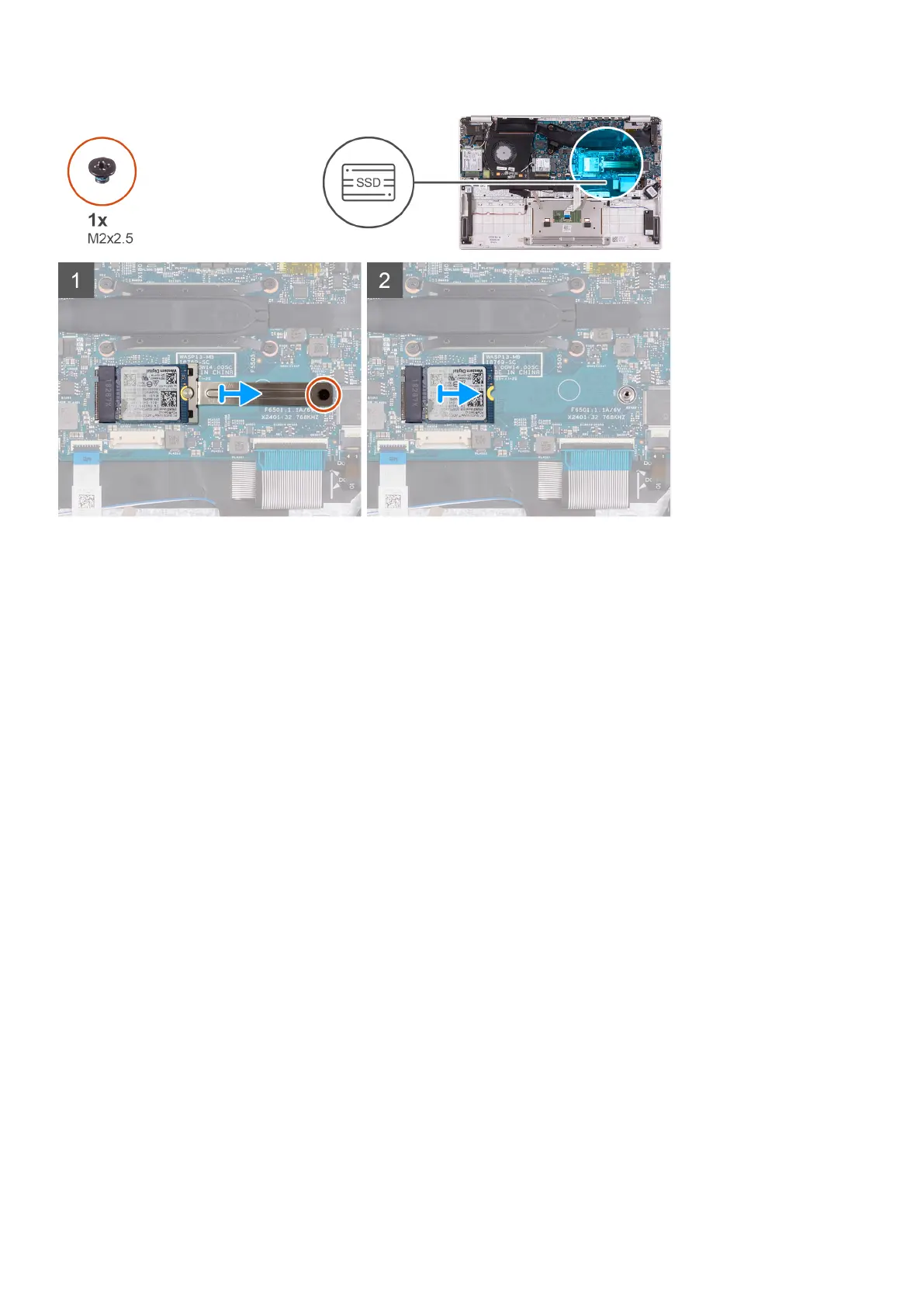

The following image indicates the location of the solid-state drive and provides a visual representation of the installation
procedure.
Removing and installing components
