About this task

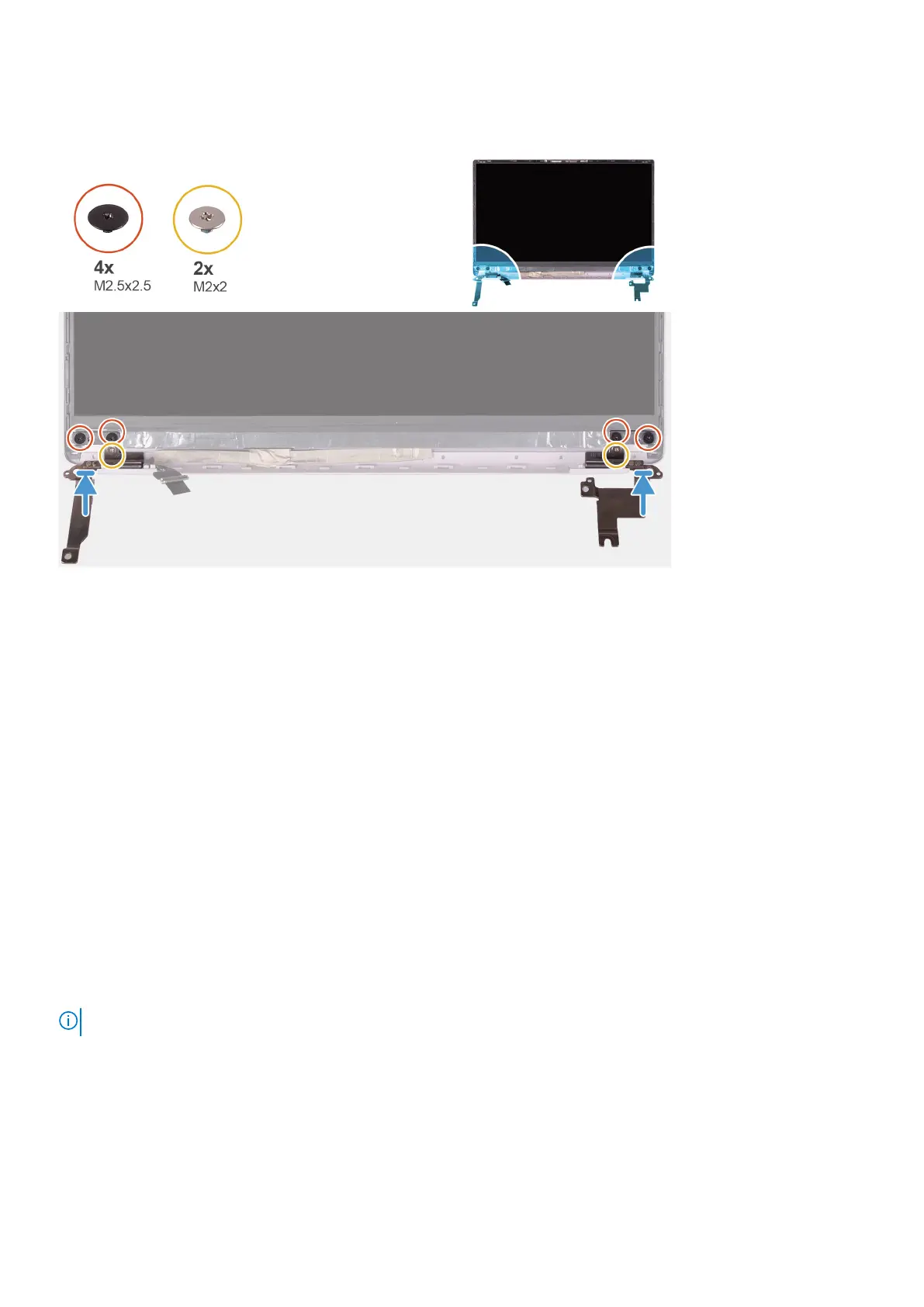

The following image indicates the location of display hinges and provides a visual representation of the installation procedure.
Steps
1. Align the screw holes on the hinges with the screw holes on the display back-cover.
2. Replace the two (M2x2) screws that secure the display hinges to the display back-cover.
3. Replace the four (M2.5x2.5) screws to secure the display hinges to the display back-cover.
Next steps
1. Install the display bezel.
2. Install the display assembly.
3. Install the WLAN card.
4. Install the battery.
5. Install the base cover.
6. Follow the procedure in After working inside your computer.
Camera
Removing the camera
Prerequisites
NOTE: This procedure is not applicable to computers shipped with a WWAN configuration.
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN card.
5. Remove the display assembly.
6. Remove the display bezel.
7. Remove the display panel.
Removing and installing components
55
