6. Replace the two screws (M2.5x3.5) that secure the left display hinge to the I/O board and palm-rest and keyboard
assembly.
Next steps
1. Install the fan.
2. Install the battery.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
Power-button board
Removing the power-button board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN card.
5. Remove the fan.
6. Remove the I/O board.
About this task

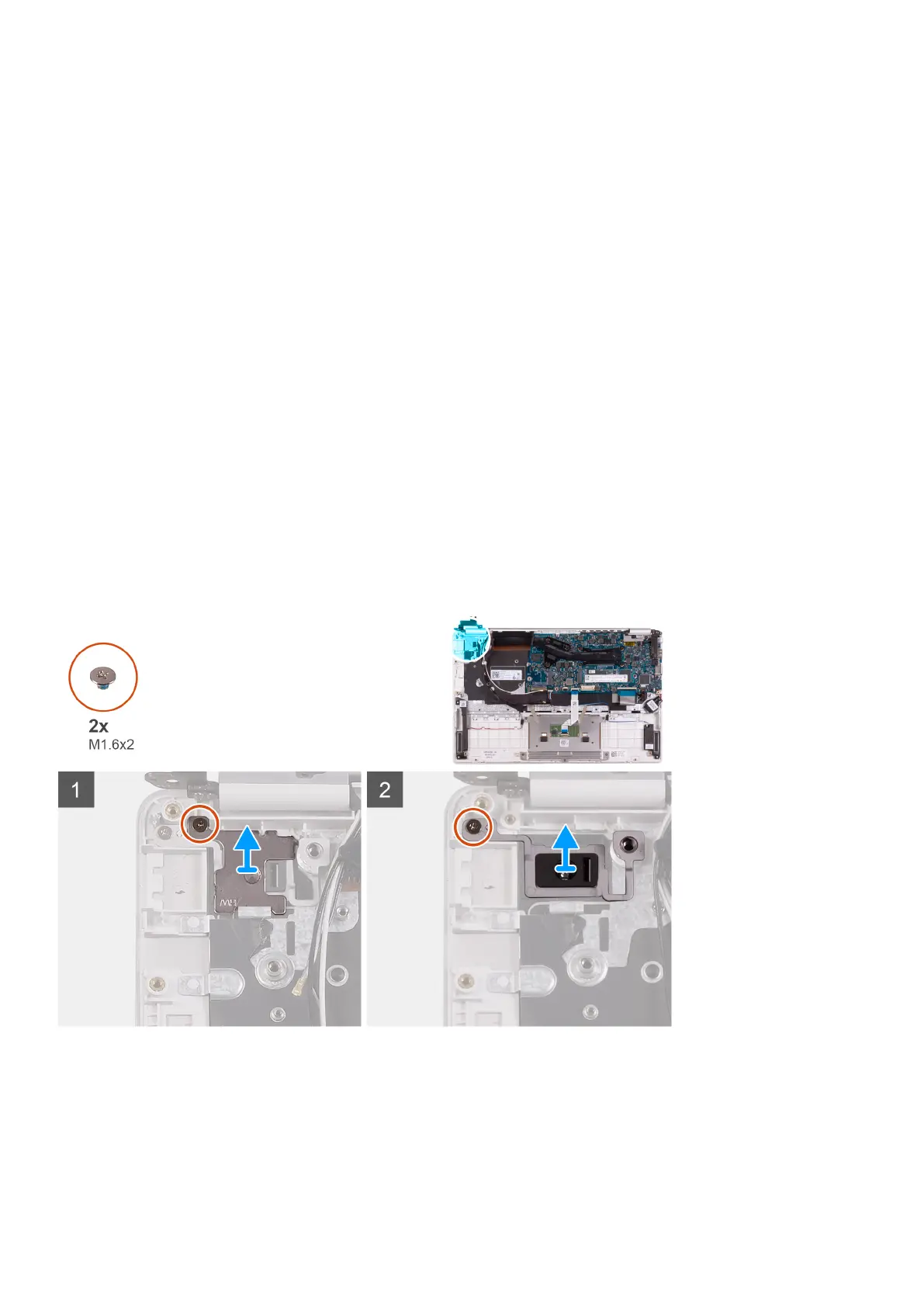

The following image indicates the location of power button and provides a visual representation of the removal procedure.
Steps
1. Remove the screw (M1.6x2) that secures the power-button bracket to the palm-rest and keyboard assembly.
2. Remove the screw (M1.6x2) that secures the power-button board to the palm-rest and keyboard assembly and lift the
power-button board off the palm-rest and keyboard assembly.
