About this task

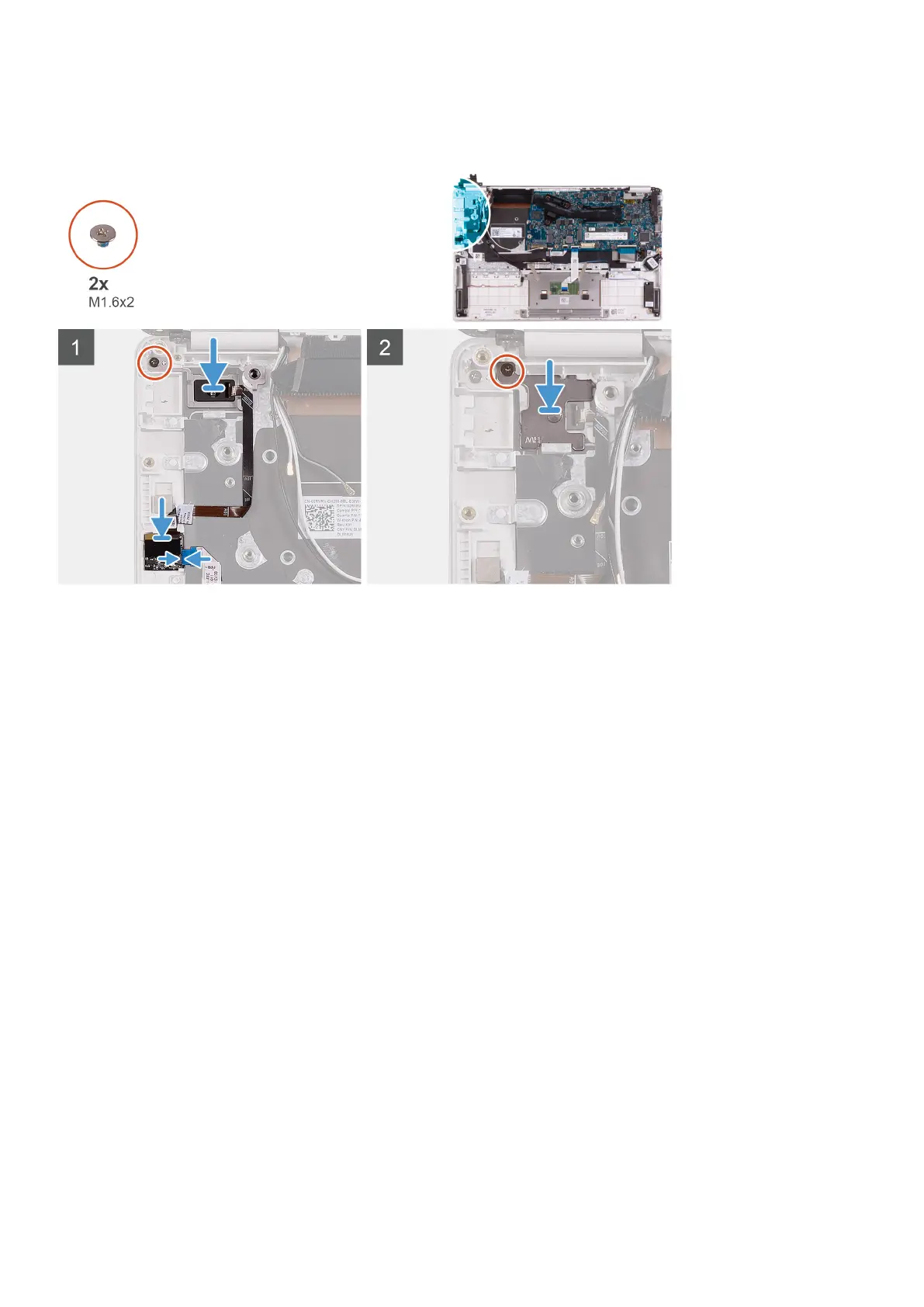

The following image indicates the location of power button with fingerprint reader and provides a visual representation of the
installation procedure.
Steps
1. Align and place the power button with fingerprint reader on the palm-rest and keyboard assembly.
2. Replace the screw (M1.6x2) that secure the power button with fingerprint reader to the palm-rest and keyboard assembly.
3. Connect the fingerprint-reader cable to the fingerprint-reader board and close the latch to secure the cable.
4. Align and place the power-button bracket on the palm-rest and keyboard assembly.
5. Replace the screw (M1.6x2) that secure the power-button bracket to the palm-rest and keyboard assembly.
Next steps
1. Install the I/O board.
2. Install the fan.
3. Install the WLAN card.
4. Install the battery.
5. Install the base cover.
6. Follow the procedure in After working inside your computer.
System board
Removing the system board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the M.2 2280 solid-state drive or M,2 2230 solid-state drive, whichever applicable.
5. Remove the WLAN card.
6. Remove the fan.
44
Removing and installing components
