Power button with fingerprint reader
Removing the power button with fingerprint reader
Prerequisites
NOTE: This procedure is only applicable for computers shipped with a fingerprint reader.
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN card.
5. Remove the fan.
6. Remove the I/O board.
About this task

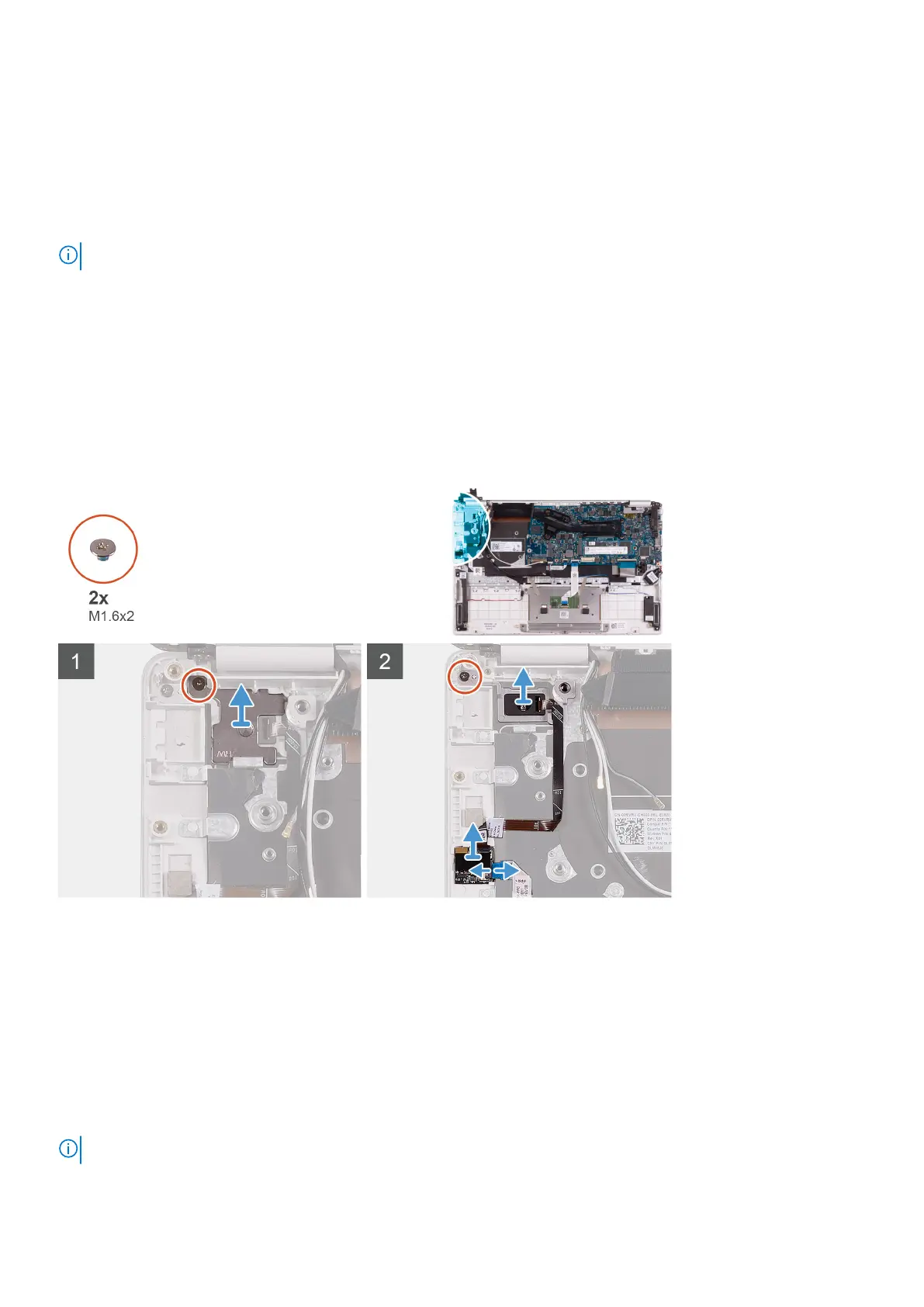

The following image indicates the location of power button with fingerprint reader and provides a visual representation of the
removal procedure.
Steps
1. Remove the screw (M1.6x2) that secures the power-button bracket to the palm-rest and keyboard assembly.
2. Remove the screw (M1.6x2) that secures the power button with fingerprint reader to the palm-rest and keyboard assembly.
3. Open the latch and disconnect the fingerprint-reader cable from the fingerprint-reader board.
4. Lift the power button with fingerprint-reader, along with the power-button cable, off the palm-rest and keyboard assembly.
Installing the power button with fingerprint reader
Prerequisites
NOTE: This procedure is only applicable for computers shipped with a fingerprint reader.
If you are replacing a component, remove the existing component before performing the installation procedure.
