14. Gently release the ports on the system board from the slots on the palm-rest and keyboard assembly and lift the system
board off the palm-rest and keyboard assembly.
Installing the system board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

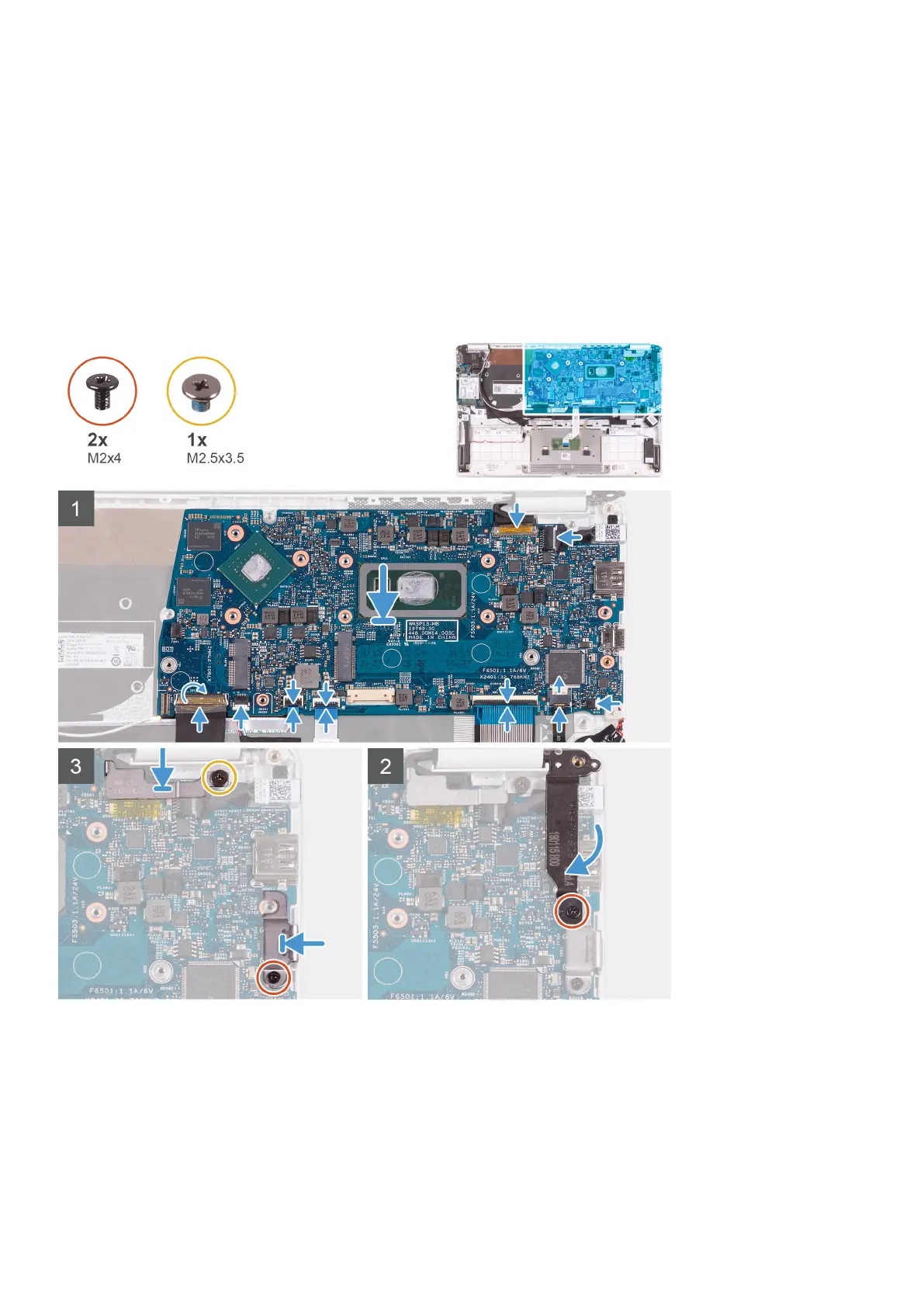

The following image indicates the location of system board and provides a visual representation of the installation procedure.
Steps
1. Slide the ports on the system board into the slots on the palm-rest and keyboard assembly and align the screw holes on the
system board with the screw holes on the palm-rest and keyboard assembly.
2. Connect the display cable on to the connector on the system board6
3. Connect the power-adapter port cable to the system board.
4. Connect the coin-cell battery cable to the system board.
5. Connect the keyboard backlit cable to the system board and close the latch to secure the cable.
46
Removing and installing components
