12. Headset-port connector
13. Power-button cable connector
14. Left-fan cable connector
15.I/O-board cable connector
16.Micro-SD-card reader cable connector
17. Display-cable connector

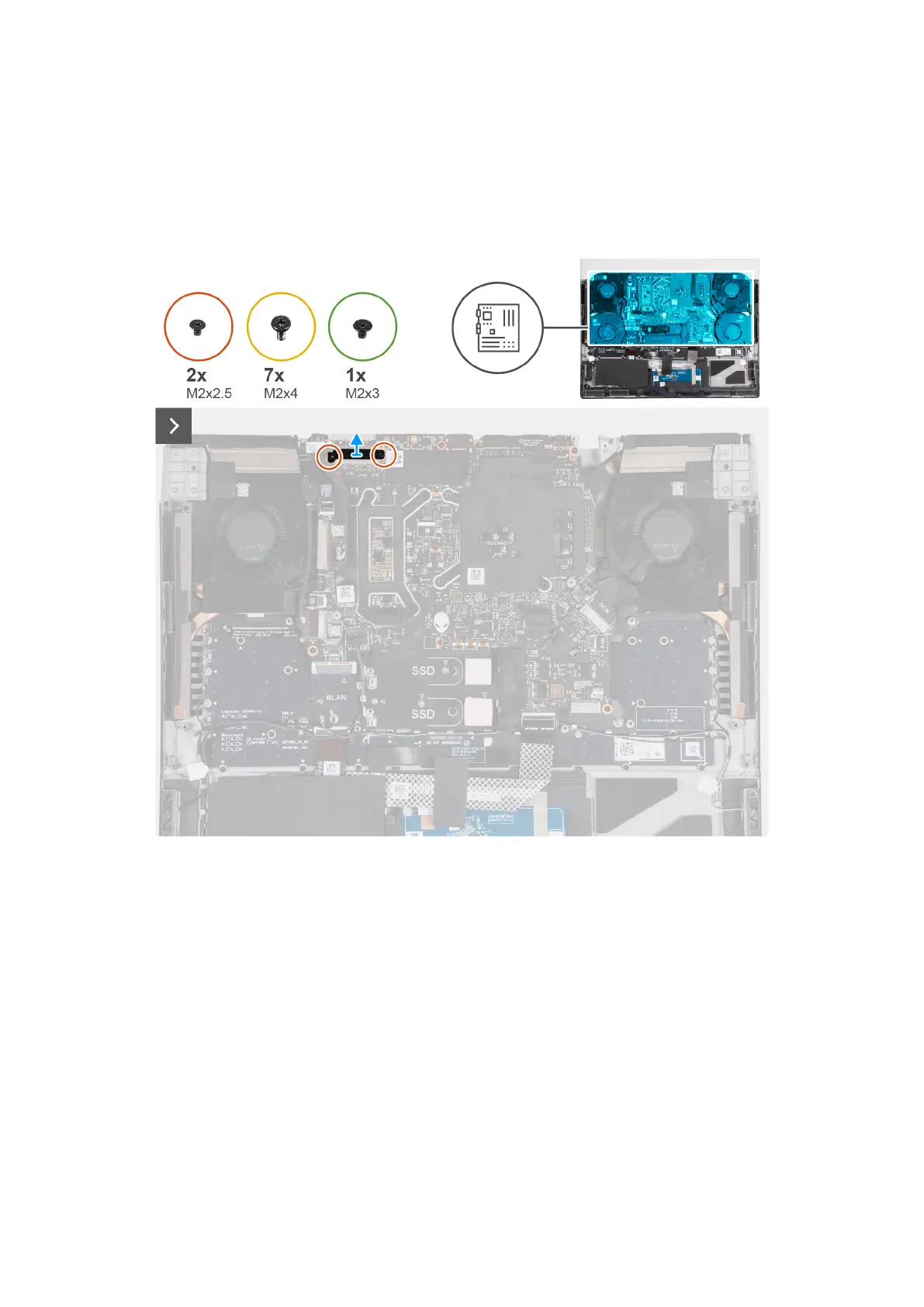

The following images indicate the location of the system board and provide a visual representation of the removal procedure.
86
