Dell P157G - Page 53

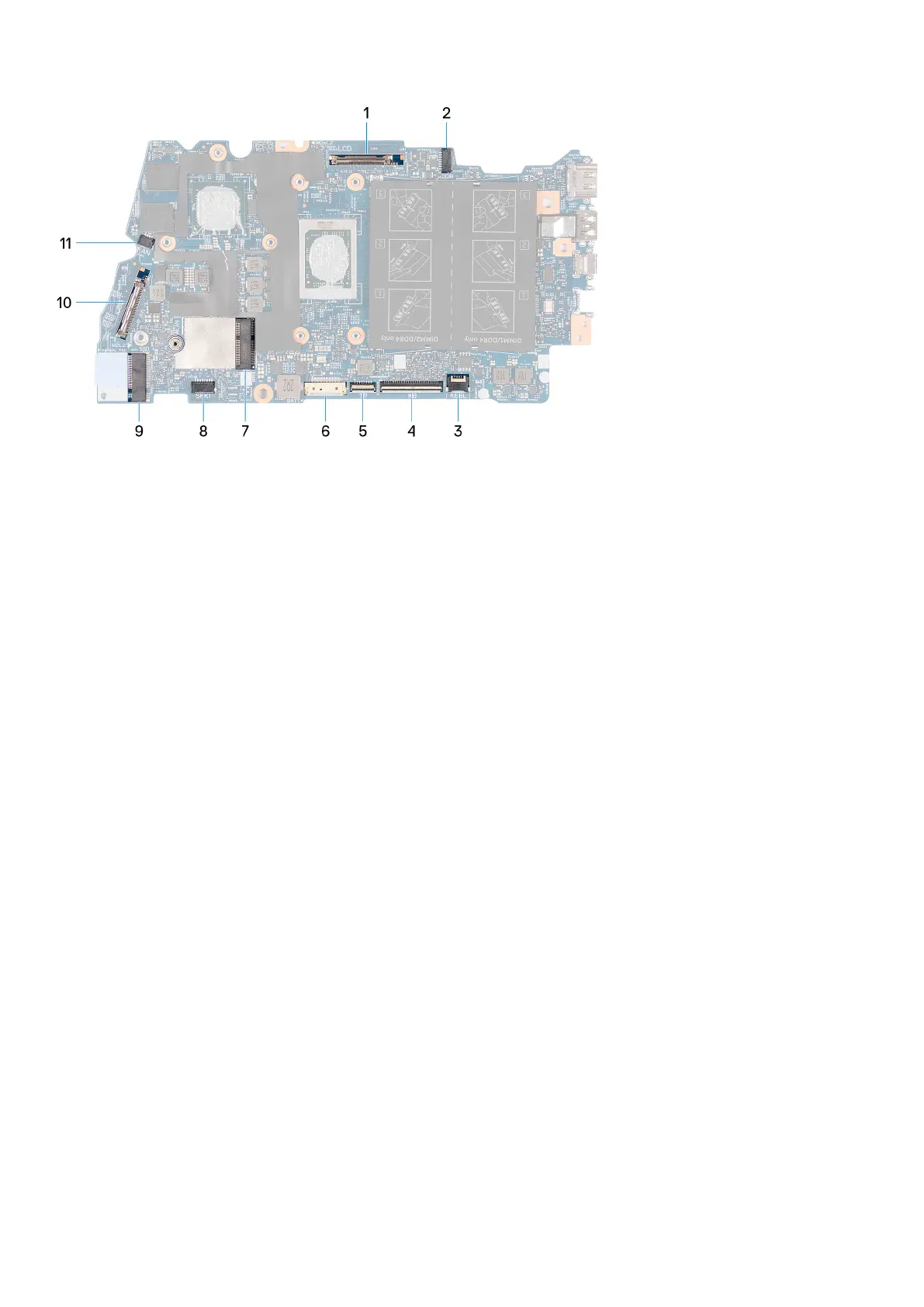

1. display cable
2. power-adapter port cable
3. keyboard-backlight cable
4. keyboard cable
5. touchpad cable
6. battery cable
7. wireless-card cable
8. speaker cable
9. M.2 2230/2280 solid-state drive
10. I/O-board cable
11. fan cable
The following image(s) indicate the location of the system board and provides a visual representation of the removal procedure.
Removing and installing components
53
